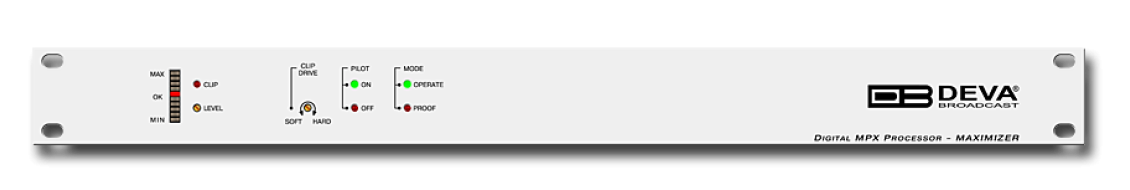

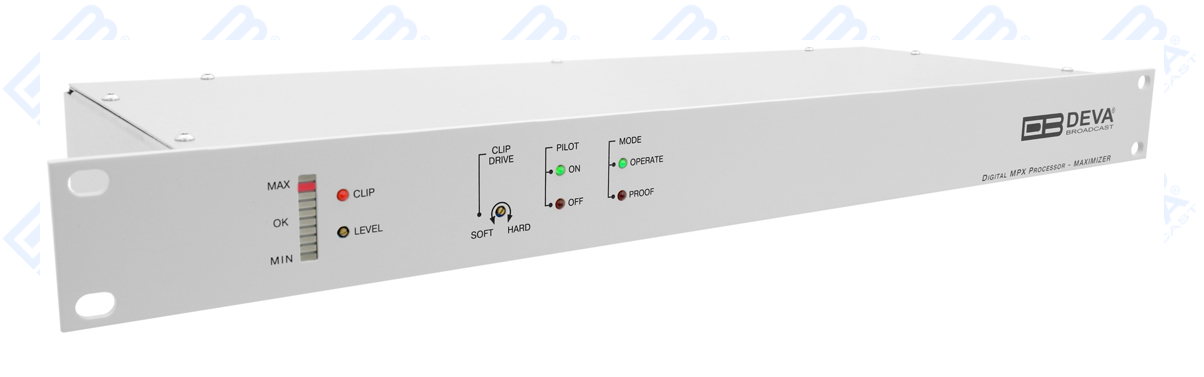

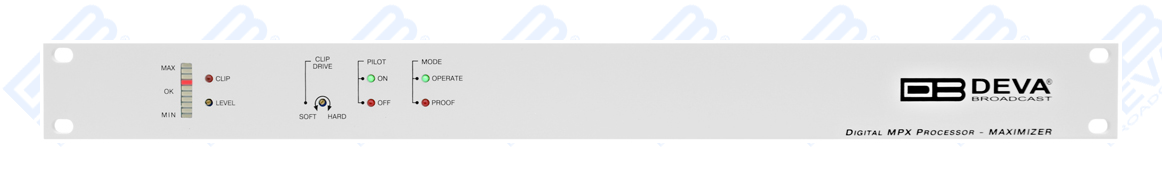

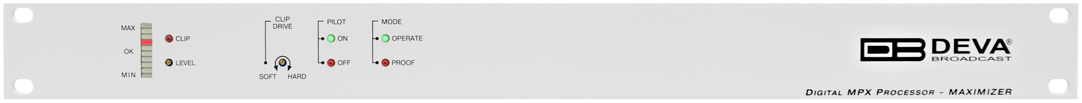

Maximizer

Digital MPX Processor

Precise, Effective, Powerfully Processing

The “MAXIMIZER” is a stereo enhancer aimed at the effective and precise control of the amplitude of the signal before it is fed to the transmitter. In order for maximum effectiveness to be achieved, this MPX processor is inserted in the transmission chain after the audio processor. Thus, the “MAXIMIZER” can compensate for any stereo degradation caused by the processor and keeps parameters within the assigned limits.

Experienced broadcasters are acquainted with the sensitivity of the parameters involved in the composite MPX signal. The “MAXIMIZER” effectively controls the amplitude (and therefore modulation depth) without affecting the quality of the output signal.

Precise, Effective, Powerfully Processing
  • Full control of the MPX signal for a full and constant modulation
  • Excellent stereo separation
  • Adjustable clipping control
  • Regeneration of the 19 Khz pilot
  • Adjustable RDS and SCA inputs

"MAXIMIZER" is an MPX processor which is able to effectively and precisely control the amplitude of the signal before it is fed to the transmitter. The inclusion of a stereo enhancer after the processor justifies the addition of this component to the transmission chain. The stereo enhancer should be inserted after the processor for maximum effect; this will, however, alter the stability of modulation defined by the processor. Another device is thus required to restrict this parameter within acceptable limits.

Whoever works with composite MPX signals will be acquainted with the sensitivity of the parameters involved; MAXIMIZER effectively controls amplitude (and therefore also modulation depth) without having any effect on the quality of the output signal.

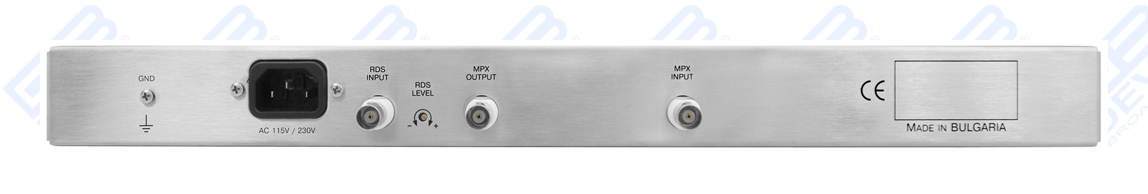

Composite Input
Impedance10 kΩ unbalanced
LevelAdjustable ±12 dBm with multi-turn level control
ConnectorBNC, floating over chassis
Composite Output
Impedance50 Ω unbalanced
Level1:1
ConnectorBNC, floating over chassis
SCA INPUTAdjustable -14 to +6 dBm with multi-turn level control
Impedance10 kΩ
ConnectorBNC, floating over chassis
RDS INPUTAdjustable -24 to 0 dBm with multi-turn level control
Impedance10 kΩ
ConnectorBNC, floating over chassis
Other Features
Max overshootsLess than 0.5 dB with +6 dB over the normal input level
Frequency response clipper20 Hz - 100 kHz. ± 0.3 dB
Signal to noise ratioGreater than 80 dB Din audio
Stereo separationGreater than 60 dB
Pilot RejectionGreater than 60 dB
Attack time5 Milliseconds
Release time30 Milliseconds
Max cable lenght10 mt. RG 58 A/U
General Data
Voltage87 - 265 VAC 50 - 60 Hz
Consumption8 VA
Operating temperature0° - 50°C
Size and Weight
Dimensions (W;H;D)485 x 44 x 240 mm
Shipping Weight540 x 115 x 300 mm / 1.2kg
