DB7007

Advanced FM Radio Re-Broadcast Receiver with IP Audio & MP3 Backup Players

Premium Tuner Performance, Stereo & RDS Re-Encoding

DB7007 is a second generation digitally-tuned FM Re-Broadcast Receiver. Considering the needs of the most demanding broadcasters and continuously supplementing new features to our devices, DEVA has enhanced DB7007 to be smarter and fully functional unit, equipped with two high-selective DSP-based FM tuners.

Thanks to the built-in monitoring system, upon audio loss at the inputs, DB7007 will not only notify the maintenance staff, but will also automatically switch to the second back-up RF Station. In case a fail of the second station is detected, DB7007 will shift to the incorporated IP Stream, MP3/AAC back-up audio source player. It is essential that the back-up sources priority is user-defined. The IF bandwidth filters guarantees unprecedented signal selectivity, while the difficult adjacent-channel problem will be completely solved.

DB7007 is designed by broadcasters for broadcasters to serve you solve the most critical re-broadcast scenarios.

Premium Tuner Performance, Stereo & RDS Re-Encoding
  • Two independent DSP based Digital FM Tuners
  • Dual antenna ports with built-in RF attenuator
  • Up to 100 dBµV direct RF Antenna Input
  • Selectable wide range IF filter bandwidths
  • FM Band 87.1 - 107.9 MHz Basic Spectrum Analyzer
  • Built-in DSP based Stereo Re-encoder
  • Advanced SNMP Ver.2C support
  • Professional AES/EBU, SPDIF and Optical Digital audio outputs
  • Wide angle, easy to read OLED display
  • Very Intuitive Navigational Menu
  • Selectable De-emphasis - 50µs and 75µs
  • Real Time Audio Program Streaming
  • Remote Listening via optional GSM modem
  • Apple and Android devices support
  • SNTP for automatic sync of the built-in clock
  • RDS and RBDS decoder with BER meter
  • TCP/IP Remote monitoring and control via SNMP and WEB Interface
  • Alarm dispatch via E-mail, SMS, SNMP and GPO
  • Multiformat Backup IP Audio player
  • Built-in Backup MP3 Player
  • Lots of Storage for over 24 hours of non-repeating audio playback

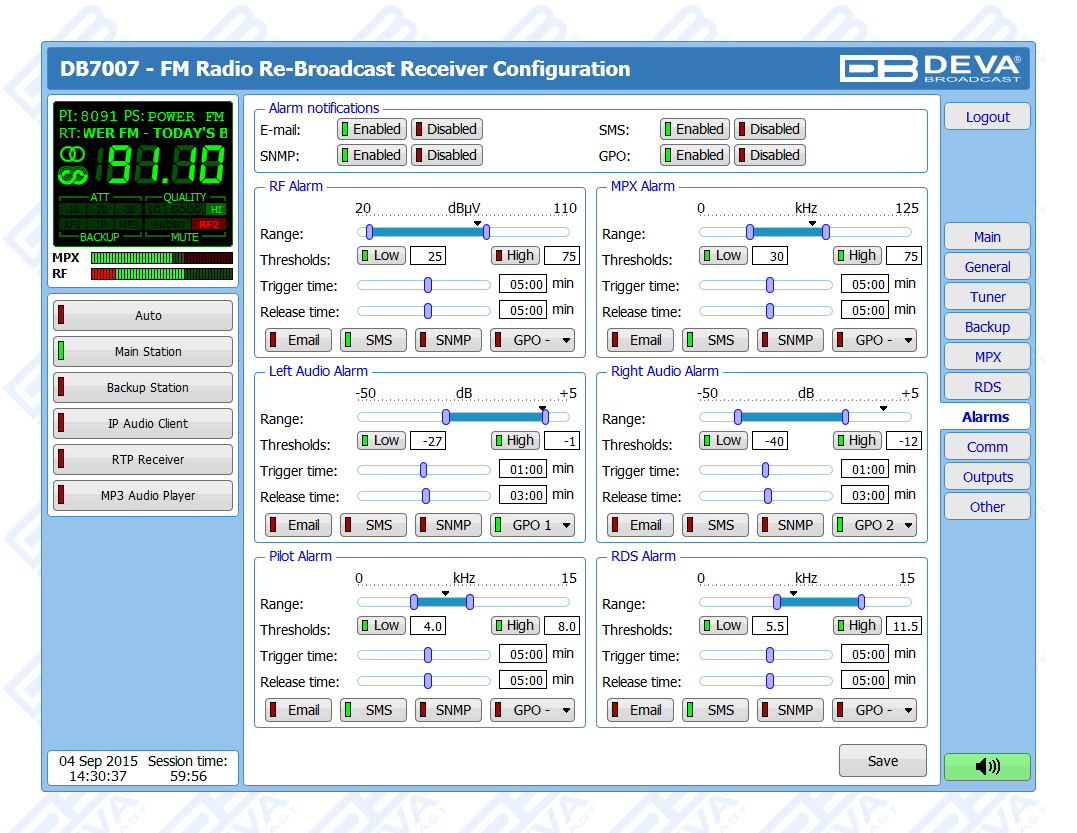

  • Adjustable MIN/MAX alarms for RF, Pilot, L & R Audio Levels
  • Adjustable MIN/MAX alarms for MPX & RDS
  • Digital Volume Control of all Audio Sources
  • Complete status reporting with SMS via optional GSM modem
  • Protected access to the device settings
  • Balanced Analog Audio Outputs on XLR Connectors
  • USB communication interface for local connectivity
  • Headphone output with front panel level control
  • Easy and intuitive Windows Application
  • Firmware updates will ensure improved operation
  • Accurate front-panel metering for local use
  • Restore Factory Parameters option
  • Wide operating voltage range: 100-240V AC
  • 19” Professional Case for high RF immunity
  • Easy Installation and Setup

DB7007 is a second generation digitally-tuned FM Re-Broadcast Receiver. Considering the needs of the most demanding broadcasters and continuously supplementing new features to our devices, DEVA has enhanced DB7007 to be smarter and fully functional unit, equipped with two high-selective DSP-based FM tuners.

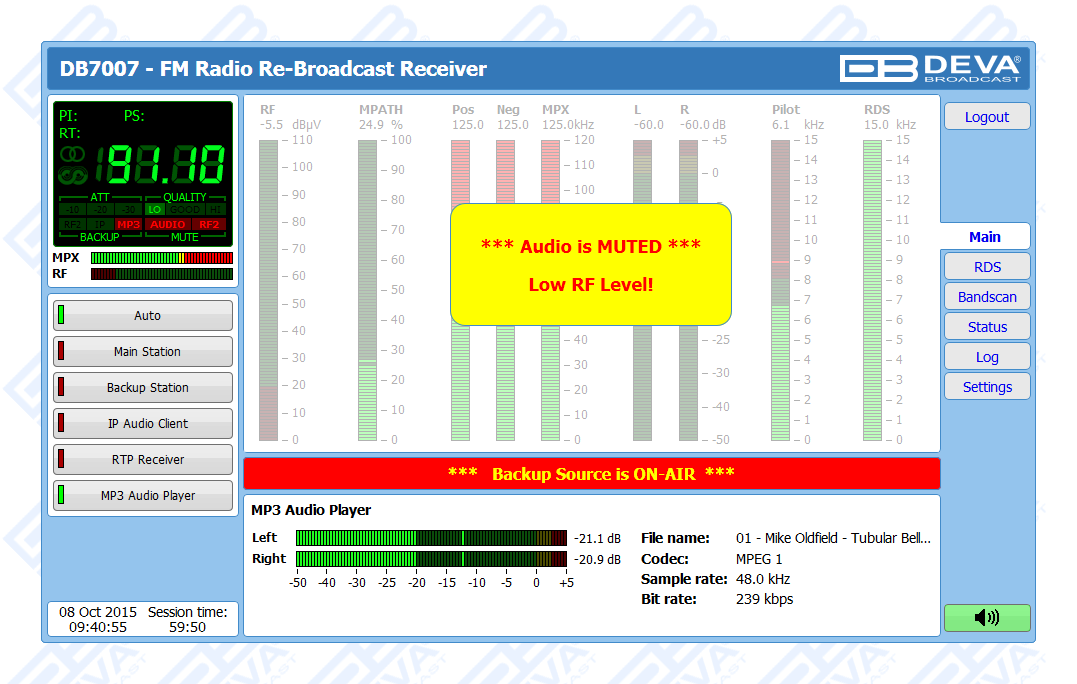

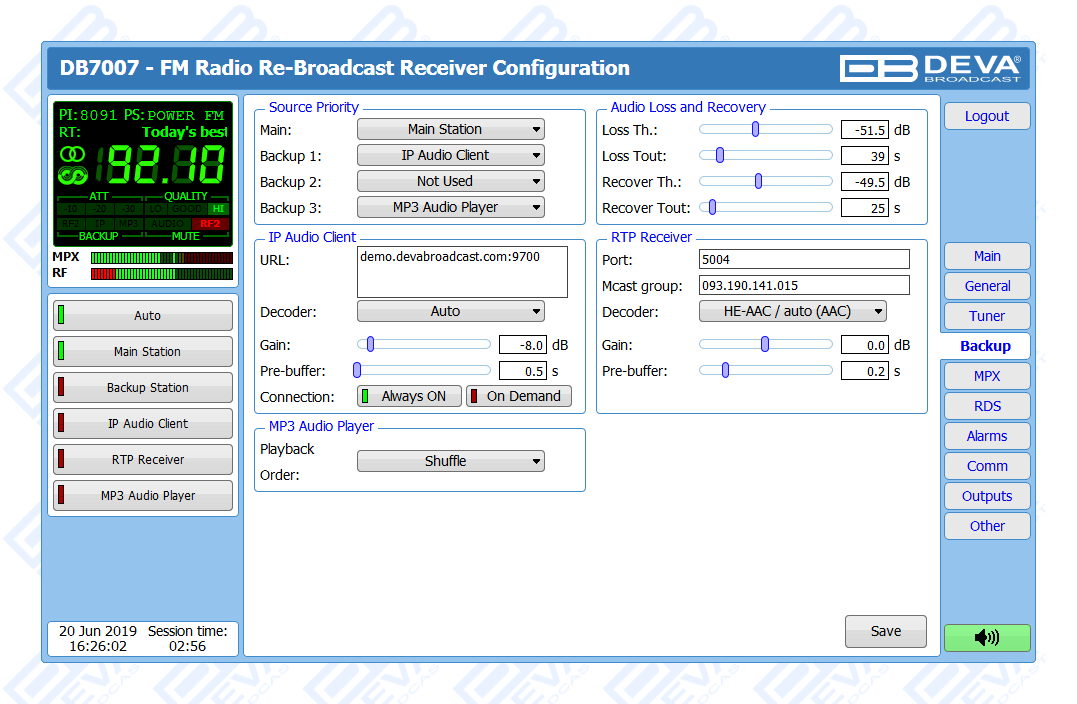

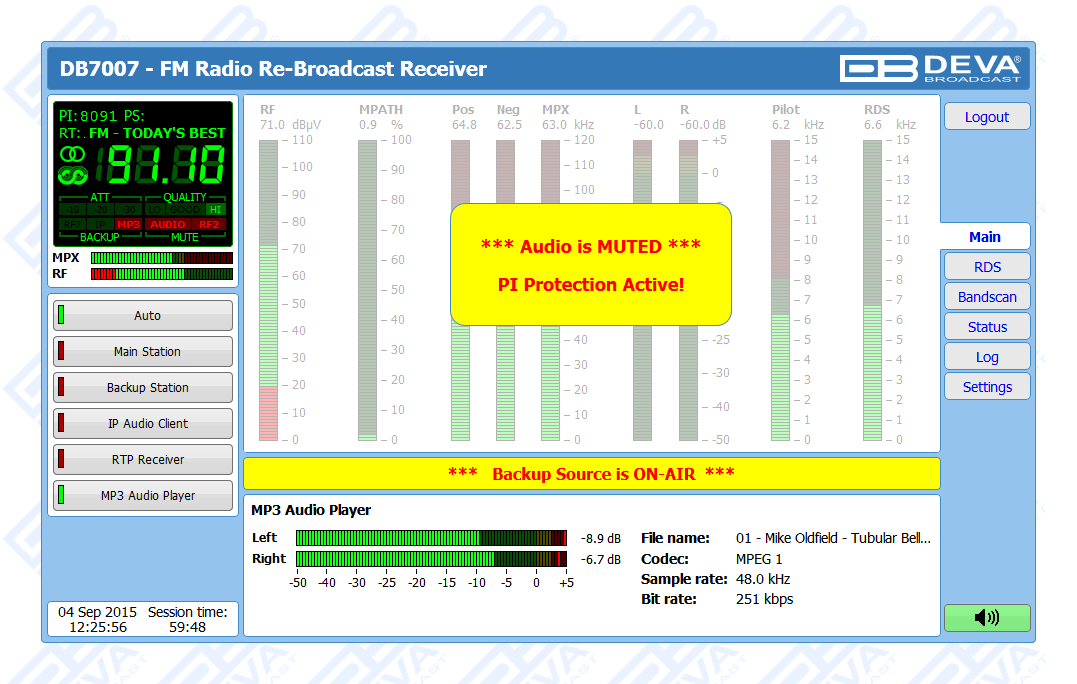

Thanks to the built-in monitoring system, upon audio loss at the inputs, DB7007 will not only notify the maintenance staff, but will also automatically switch to the second back-up RF Station. In case a fail of the second station is detected, DB7007 will shift to the incorporated IP Stream, MP3/AAC back-up audio source player. It is essential that the back-up sources priority is user-defined. The audio files and playlists can be uploaded in the device’s internal memory directly from your PC, via any FTP client. When the signal at the default input is restored, the DB7007 will automatically switch back to it. Depending on your preferences, several types of alarm notifications are utilized - E-mail, SNMP and SMS (via the optional GSM modem).

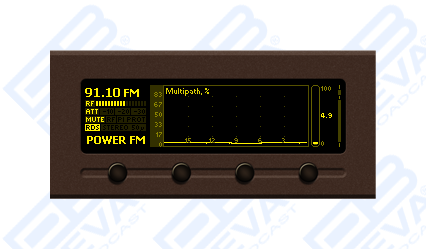

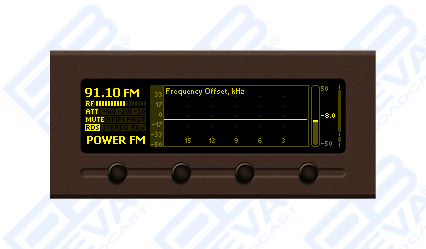

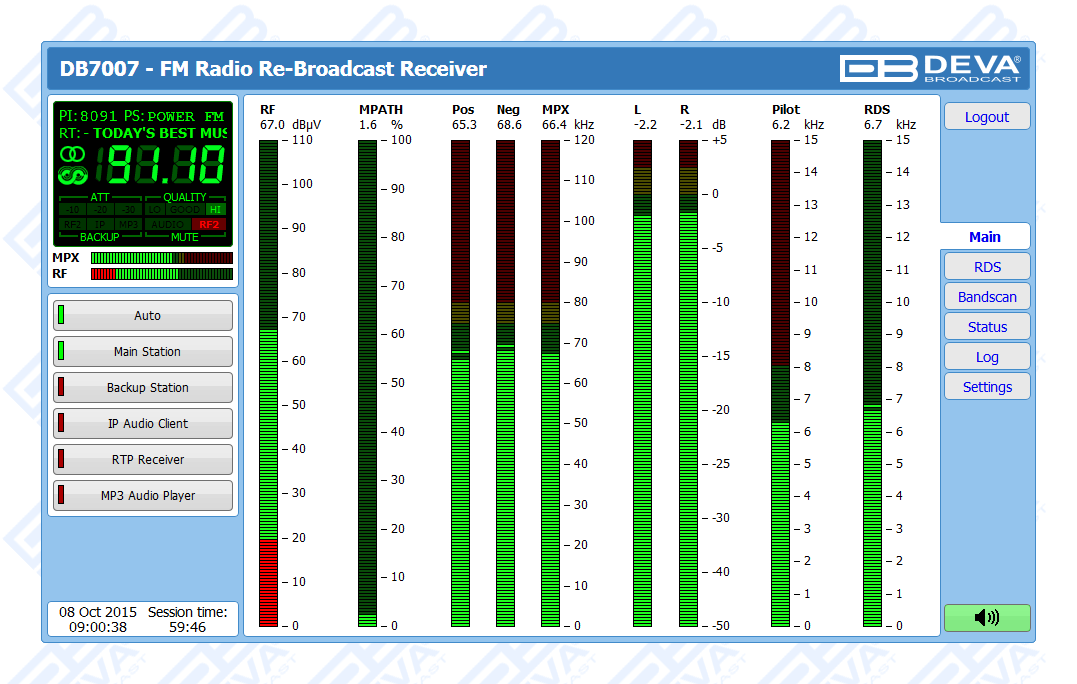

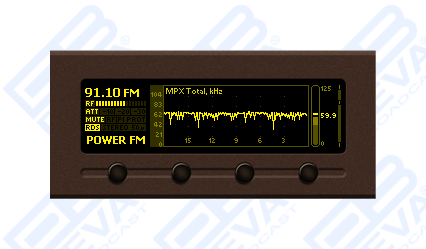

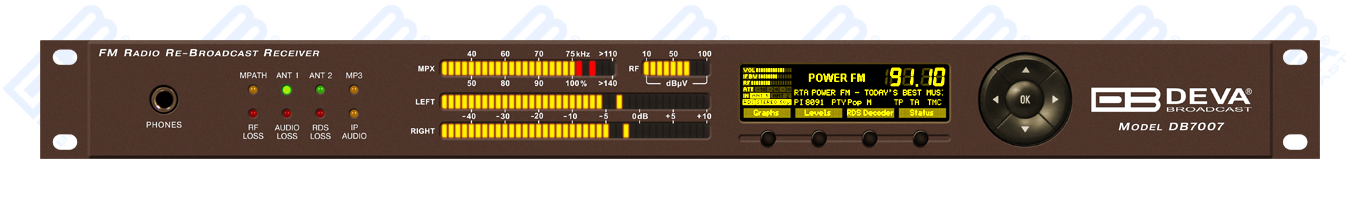

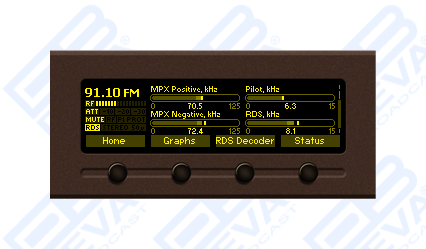

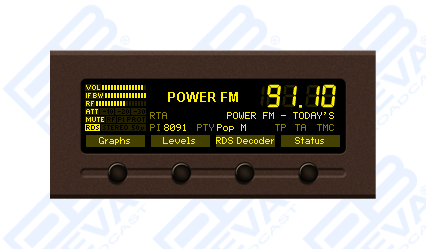

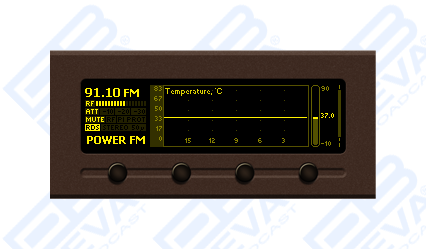

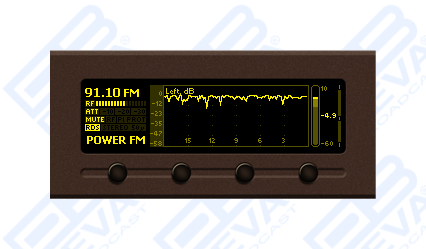

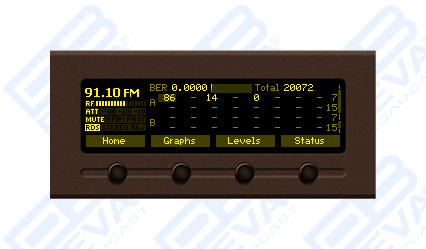

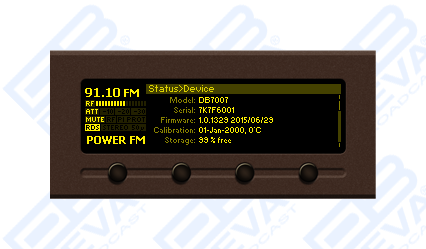

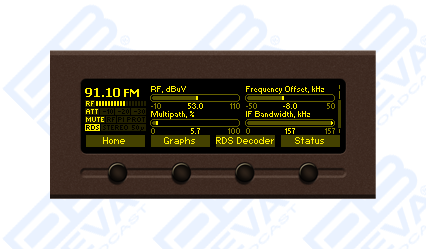

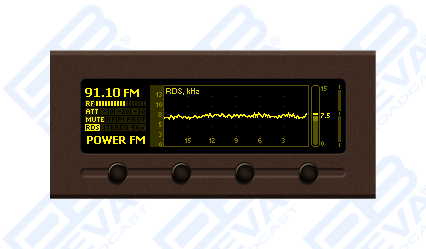

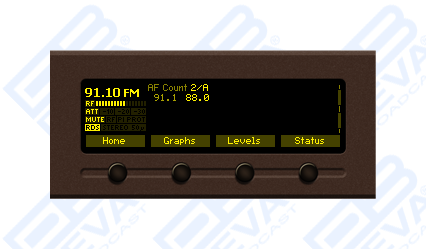

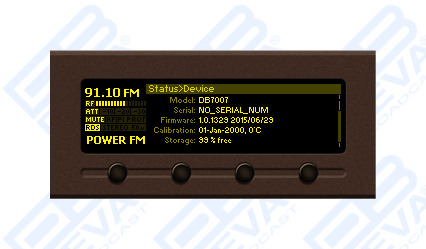

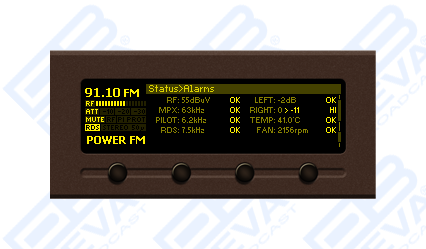

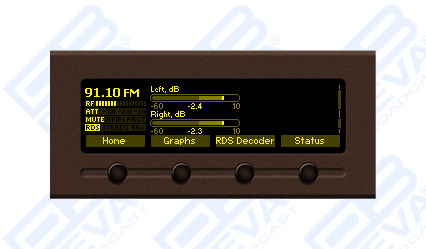

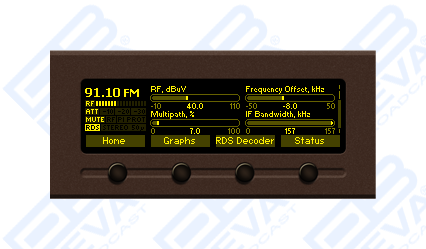

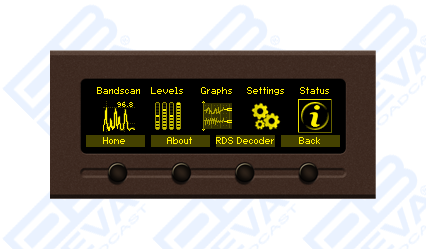

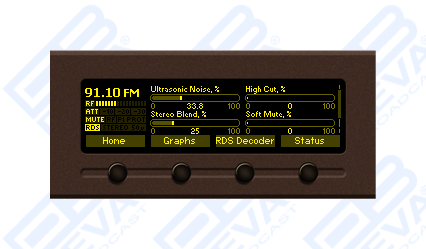

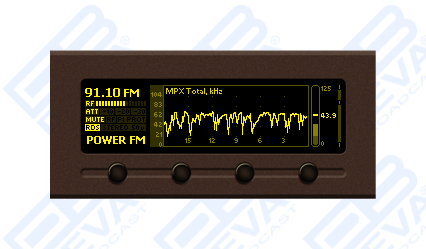

The DB7007 has an easy to read, high-resolution OLED graphical display, front panel alarm indicators and ultra-bright bargraphs with up to 40 LED segment indicators that allow reading at a glance of the MPX, Left and Right audio and the RF level, as well. The RF (IF) signal is digitized as soon as it enters the device and all signal processing is then made through DSP algorithms, thus guaranteeing measurement reproducibility over time. The IF bandwidth filters guarantees unprecedented signal selectivity, while the difficult adjacent-channel problem will be completely solved. DEVA advanced DB7007 will measure all important parameters of the FM transmission.

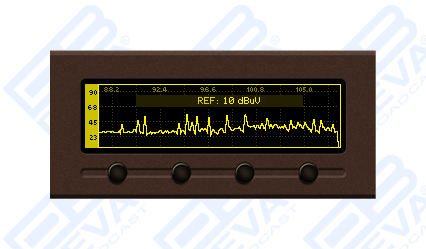

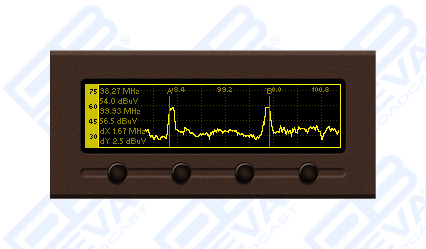

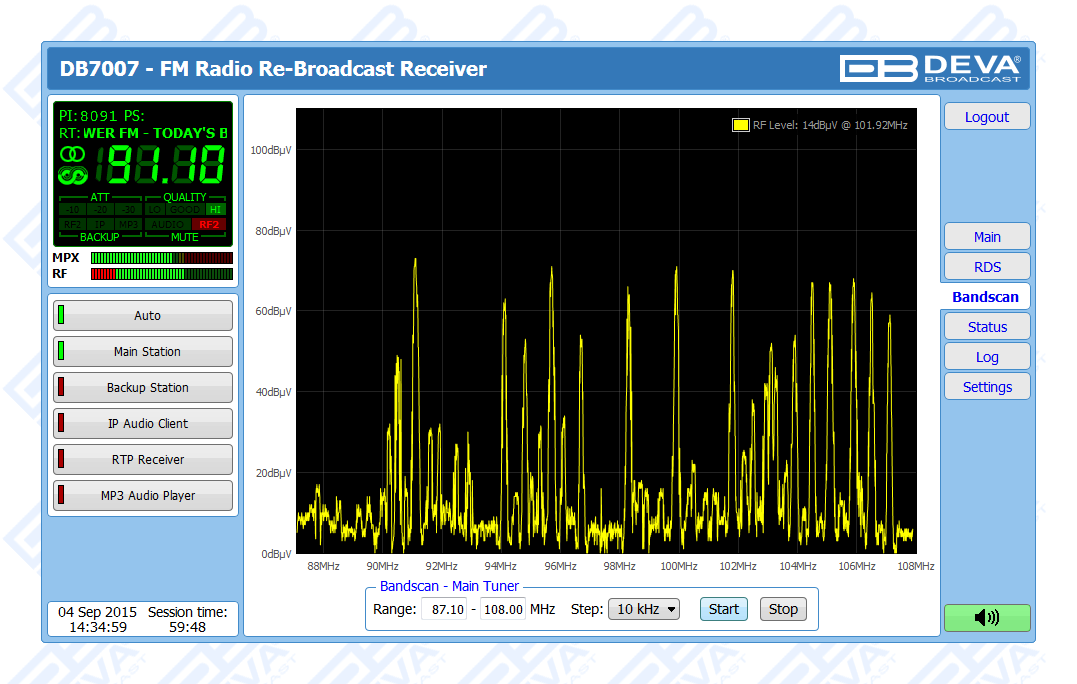

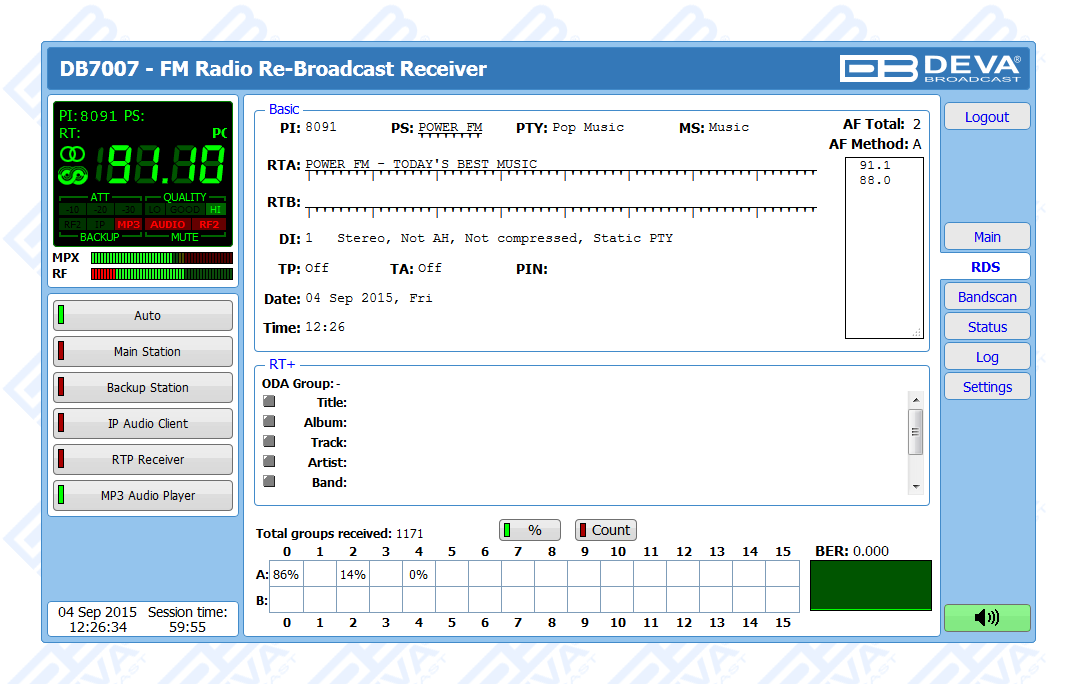

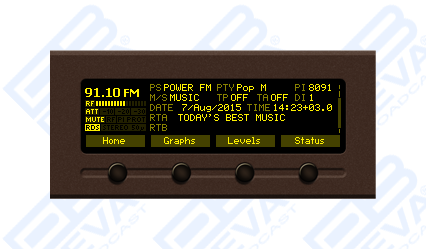

Additionally, the RDS information contained in the processed MPX signal is easily visualized and represented as RDS/RBDS Data and detailed RDS/RBDS Statistics. The utilized Band Analyzer function presents an overview of all available FM signals, plus the RF signal strength. Scans can be performed within any section of the FM band in 4 different frequency steps. The consequently generated spectrum diagram visualizes the relation RF Level vs. Frequency.

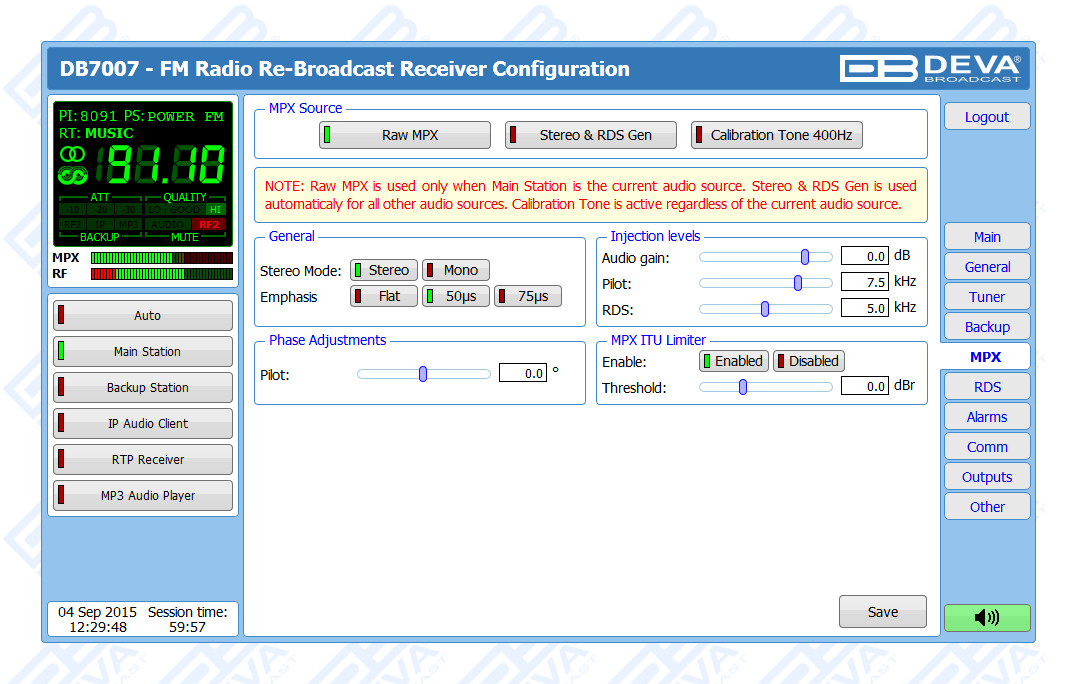

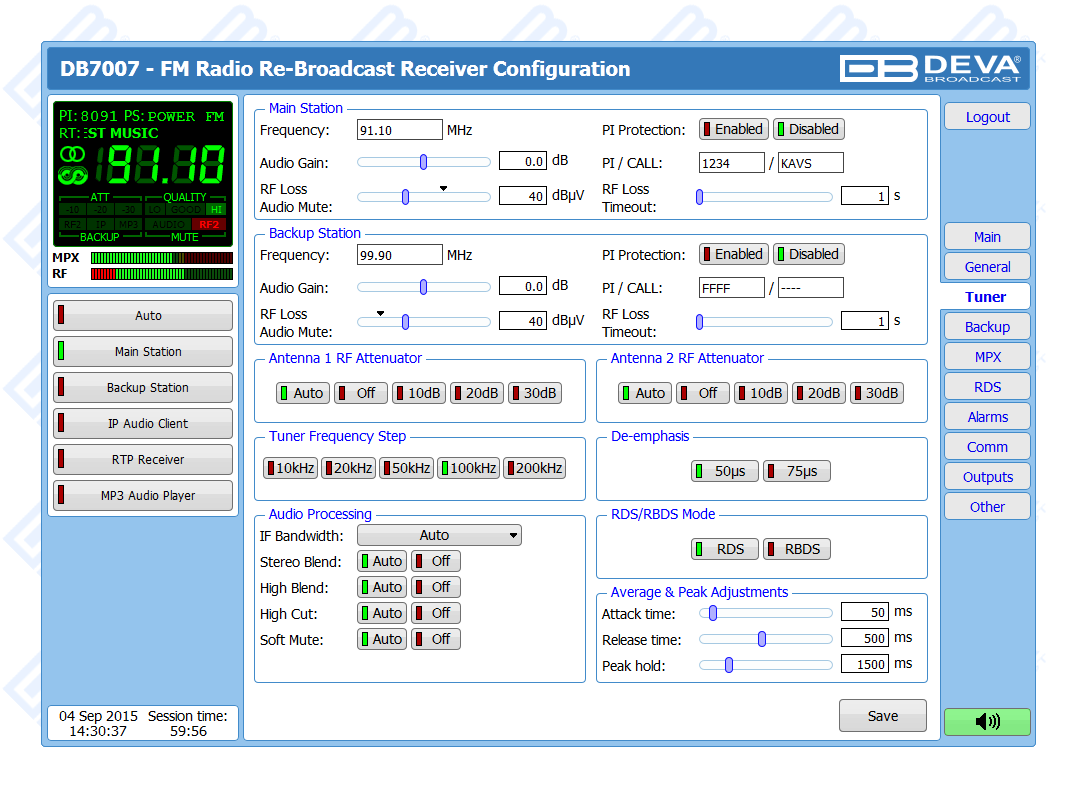

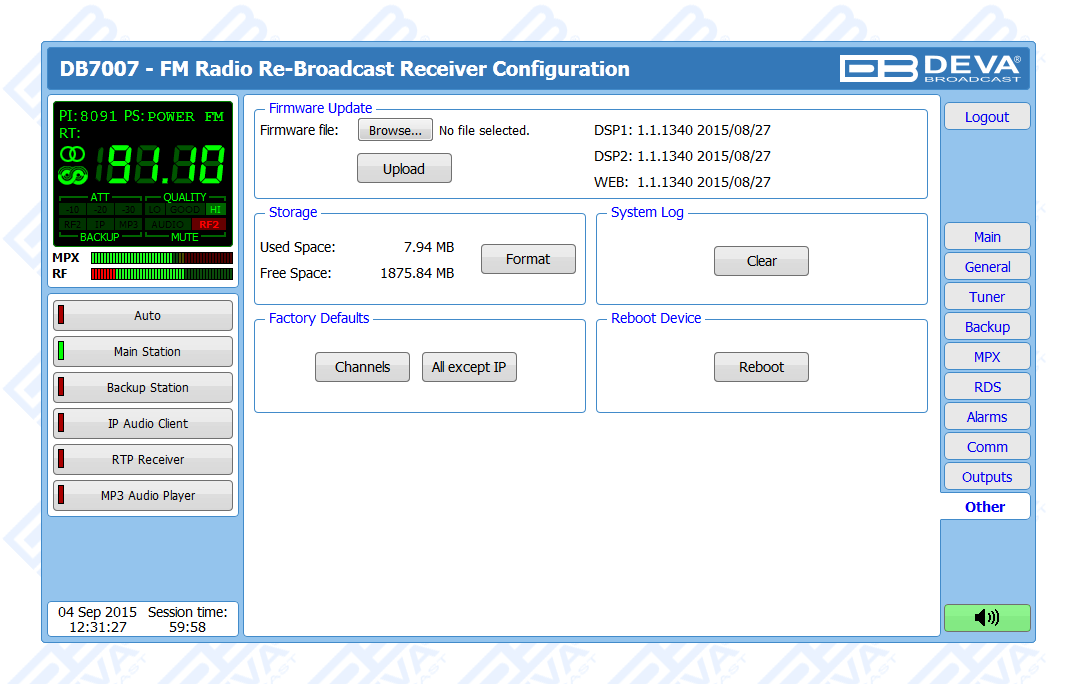

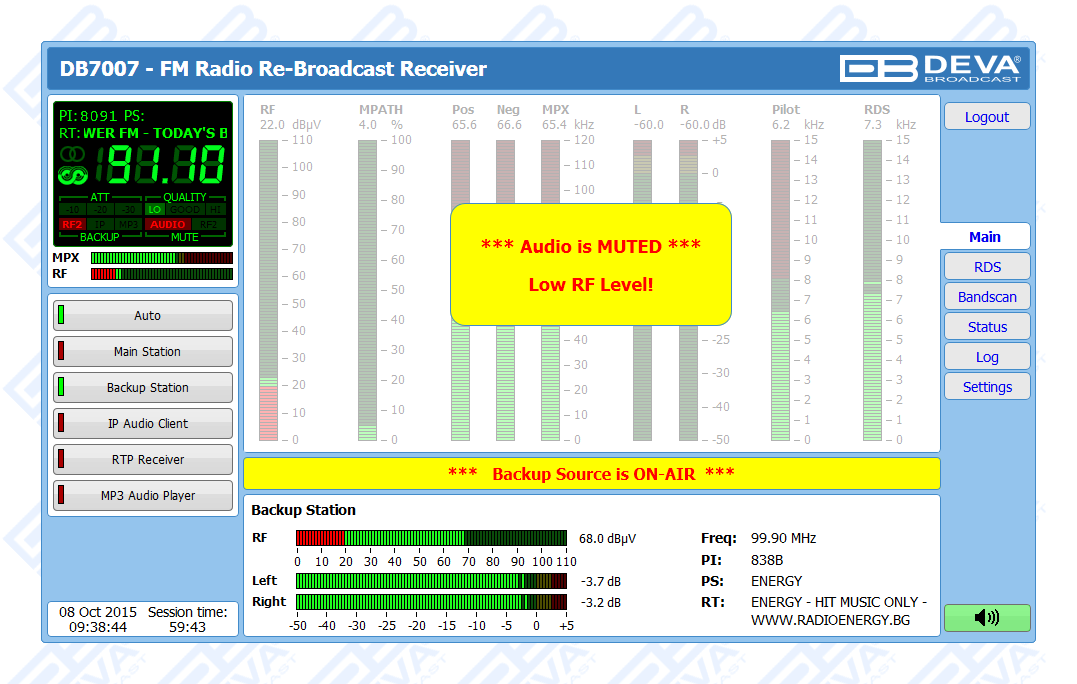

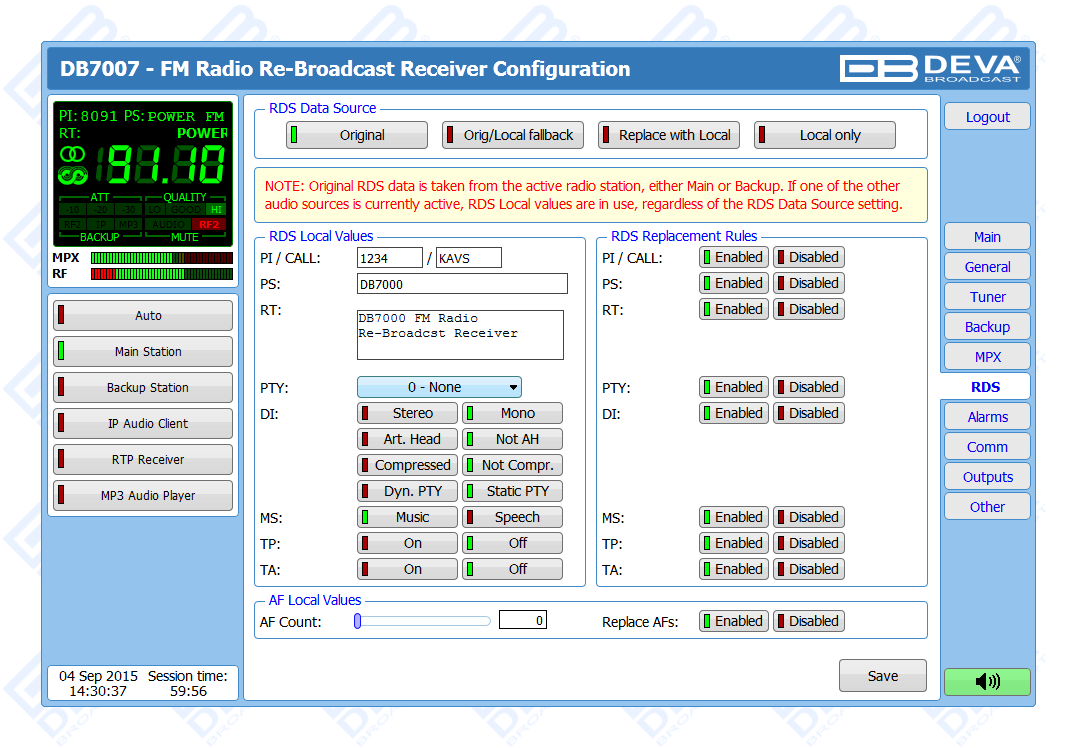

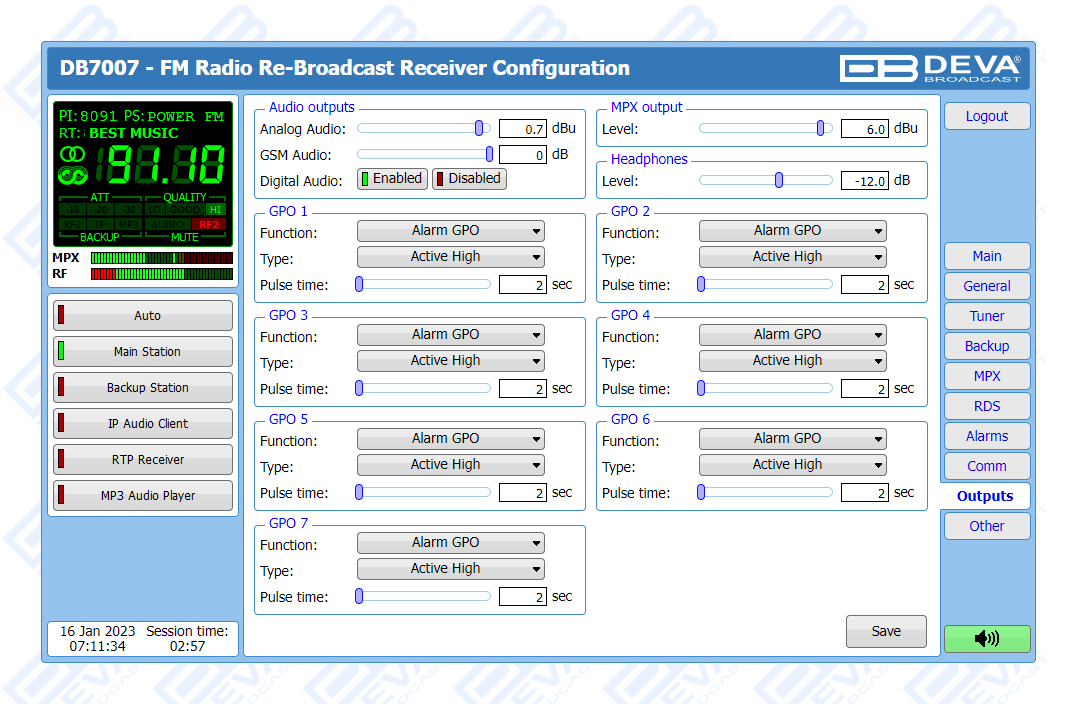

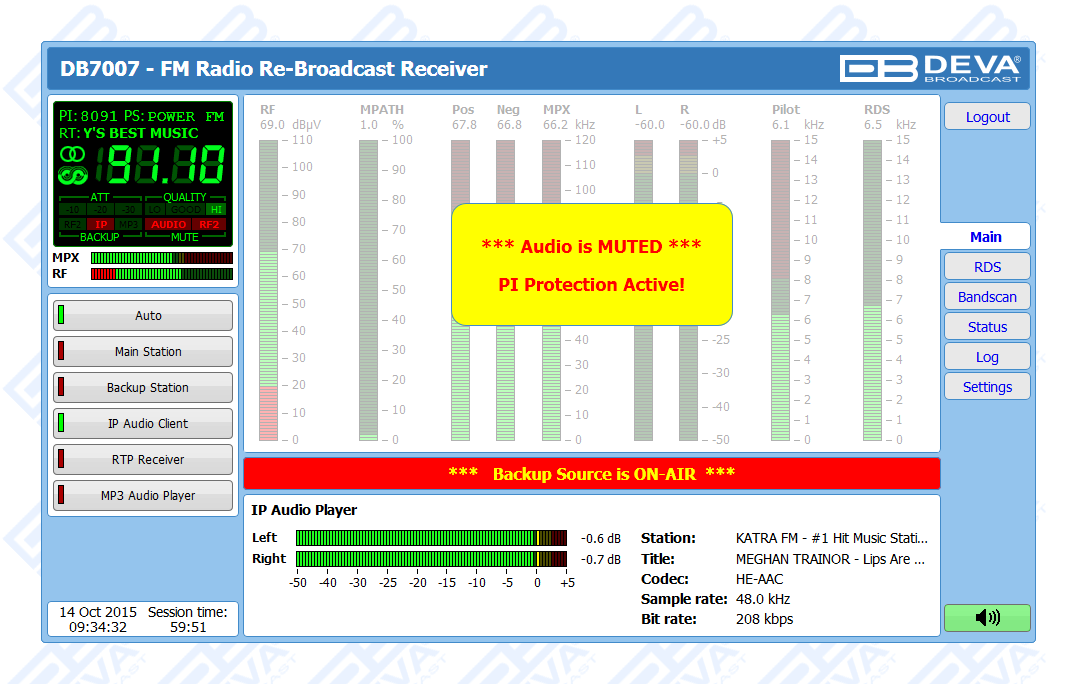

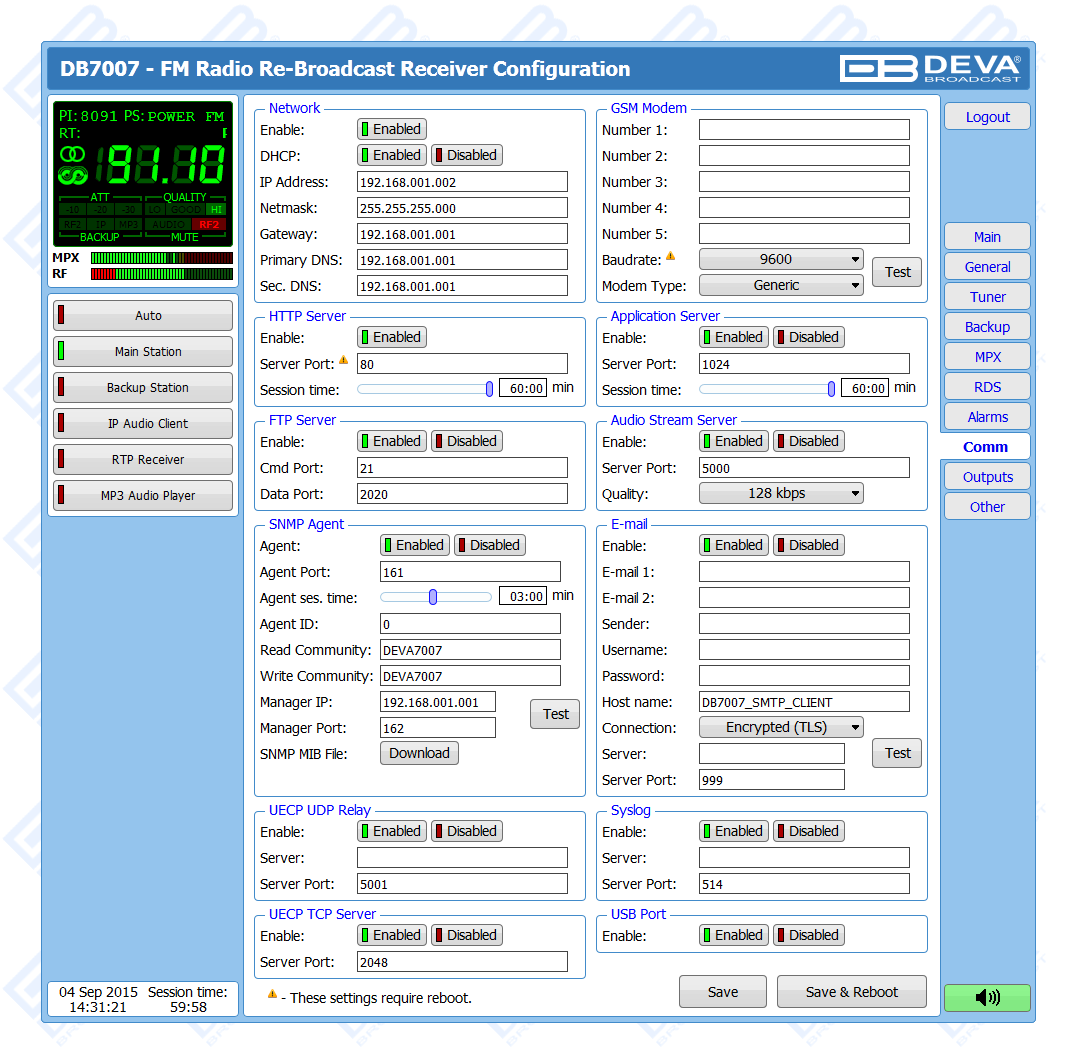

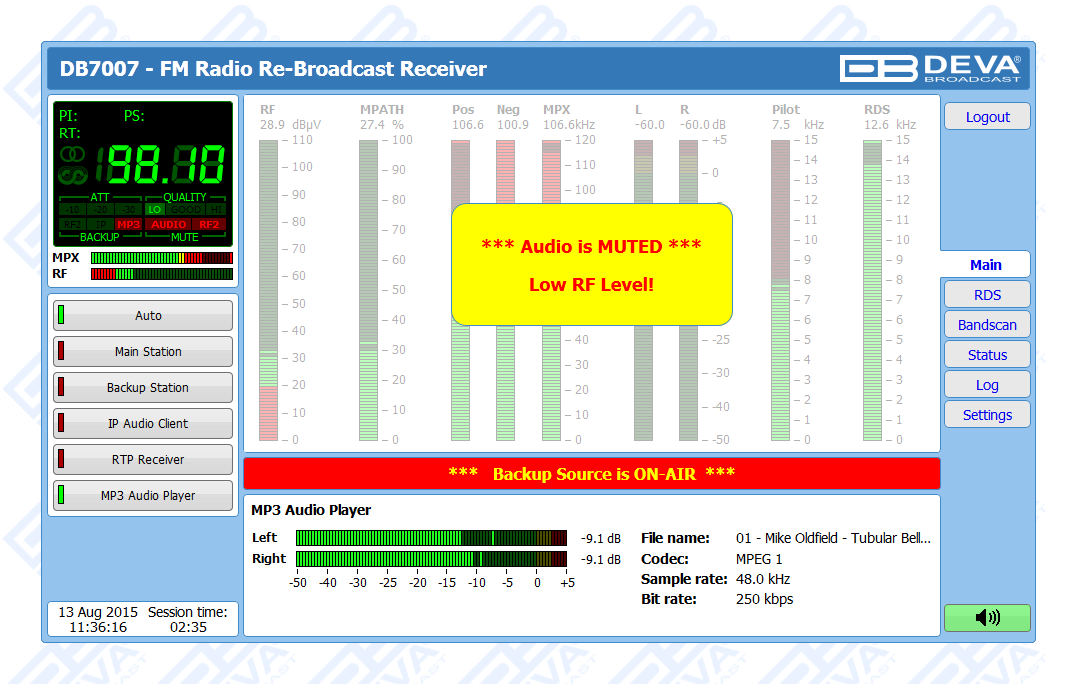

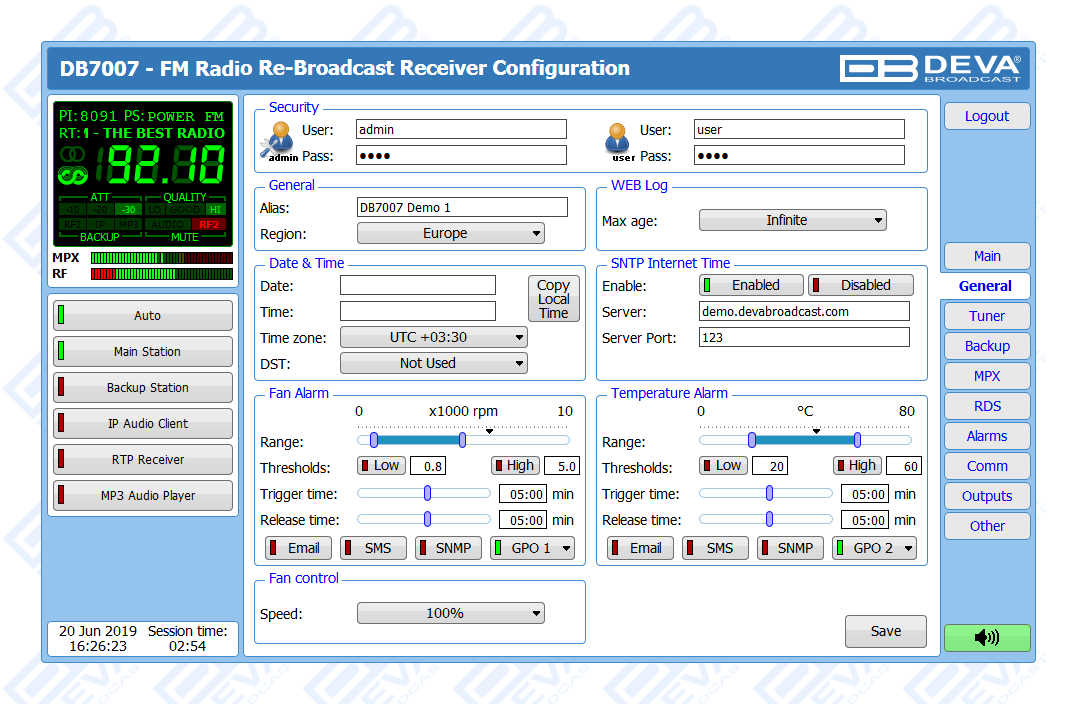

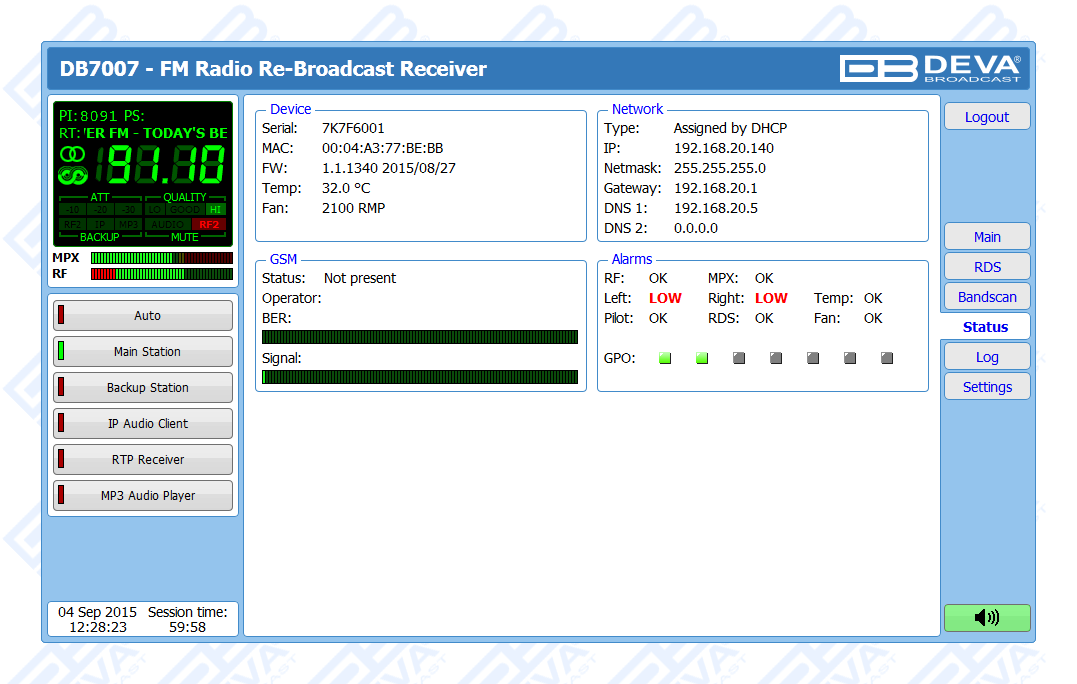

Adhering to the underlying principle of all DEVA products to be as much user-friendly as possible, the DB7007 can be also easily controlled through the built-in Web server - you can use a standard web browser to monitor the status or to make any adjustments (iOS and Android devices are also supported); the supplied free of charge DEVA Device Manager Software or alternatively, through the very intuitive user interface.

Designed to ensure premium broadcasting experience, DB7007 will meet and even exceed your expectations
for a first rank re-broadcast receiver.

RF Input
Tuning Range87.1 to 107.9 MHz, Frequency Agile
Tuning Step10, 20, 50, 100 kHz
Tuner Sensitivity30 dBµV
Antenna PortsDual, 2 x BNC Connectors, 50Ω
Antenna Ports Isolation> 40 dB
Internal Attenuator0, 10, 20 and 30 dB
Dynamic range100 dB
FM Demod
IF Filter Bandwidth15 Increments (25kHz - 157kHz, Auto)
Frequency Response±0.1 dB, 10 Hz to 86 kHz
Dynamic range90 dB
Stereo Decoder
Frequency Response (L and R)±0.1 dB, 10 Hz to 15 kHz
SNR (Stereo)60 dB, 50 µs de-emphasis
THD0.1%, 10 Hz to 15 kHz, 50 µs de-emphasis
Separation50 dB, 50 Hz to 10 kHz, 50 µs de-emphasis
Crosstalk52 dB
Backup IP Audio Player
Number of Streamsone main and two alternative streams with auto-switch on failure
Stream Clientsshoutcast, icecast
Stream FormatsPCM (32, 44.1, 48kHz), MPEG1 Layer 3 (MP3), HE-AAC (v.1 and v.2)
Bit RatesAll standard bit rates, including VBR
Number of ChannelsMono, Stereo
Buffer Size Adjust5Kb to 64Kb
Digital Gain Adjust-10db to +10dB
Backup MP3 Player
Storage Capacity2Gb on SD Card
Supported encodersHE-AAC (v.1 and v.2), MPEG-1 Layer 3
MP3 bit rates32-320 kbps and VBR
Sample ratesAll sampling frequencies specified by MPEG1 L1/L2/L3 (32, 44.1 and 48kHz);
MPEG2 L1/L2/L3 (16kHz, 22.05kHz and 24kHz) and MPEG2.5 L3 (8kHz, 11.025kHz, and 12kHz)
Supported file types*.MP3, *.AAC, *.M4A, *.M3U
Playback modesAlphabetical ascending and descending, Shuffle, Playlist and Shuffled playlist
Remote file managementBuild-in FTP server
Digital Gain Adjust-10db to +10dB
RDS Decoder
StandardsEuropean RDS CENELEC; United States RBDS NRSC
Error Correction & CountingYes
AF DecodingYes
CT (Time/Date)Yes
PI, PTY, DI, MSYes
TA/TPYes
RT (Radio Text), RT+Yes
PS (Program Service name)Yes
ODAYes
Group AnalyzerYes
BER AnalyzerYes

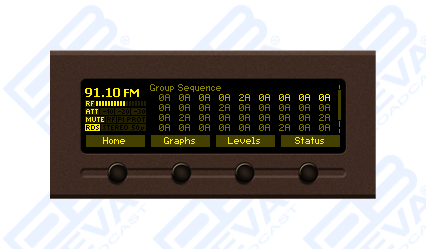

Group Sequence DisplayYes
RDS RAW Data DisplayYes
Metering Accuracy

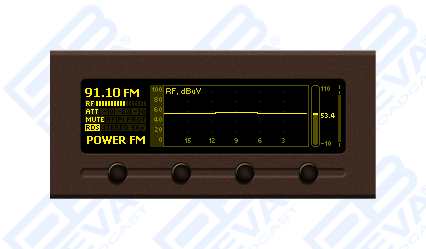

RF Level±1 dB, 0 to 100 dBµV
Total, Pos, Neg±2 kHz, 10 to 100 kHz, 1 kHz resolution

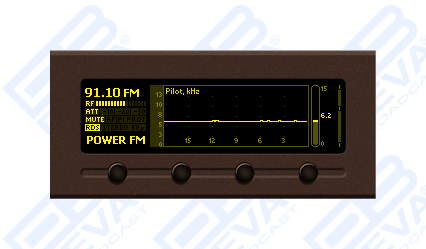

Pilot, RDS±0.5 kHz, 1 to 12 kHz, 0.2 kHz resolution

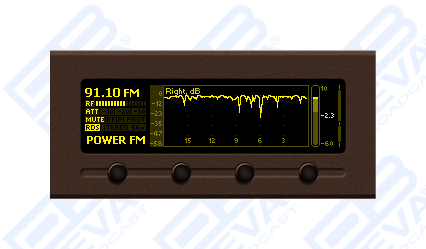

Audio±1 dB, +10.0 to -55.0 dB, 0.1 dB resolution

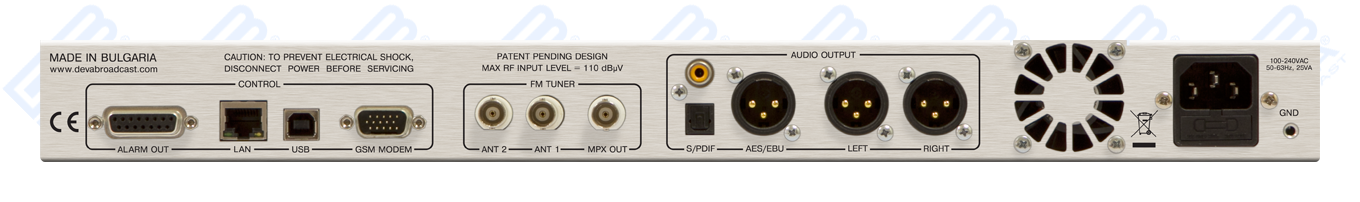

Outputs
Composite+12 dBu @ 75kHz, 75Ω, unbalanced BNC Connector
Audio (L, R)+6 dBu, 600Ω, balanced XLR Connector
AES3 (L, R)5.0 Vp-p, 110Ω, balanced XLR Connector
SPDIF (L, R)3.0 Vp-p, 110Ω, unbalanced BNC Connector
Optical (L, R)Transmitter, TOSLINK
AlarmsProgrammable terminals on rear panel, optoisolated
Headphone6,3mm (1/4") Phone Jack
Communication Interfaces
USBB-type Connector
Ethernet 10/100 Base-TRJ45 Connector
GSM Modem15 pin Male D-Sub Connector
Measurement Storage
Storage2GB Build-in Memory Card
Data formatText, CSV
Power
Voltage100-240V / 50-60 Hz / 25W
ConnectorIEC320
Size and Weight
Dimensions (W;H;D)485 x 44 x 180 mm
Shipping Weight540 x 115 x 300 mm / 2.7kg
