DB91-TX

Compact IP Audio Encoder

High-operational efficiency second generation IP Audio encoder

DEVA’s second generation IP Audio encoder converts the audio signal into high quality compressed audio stream, and transmits the output signal directly over IP-based networks. To ensure audio transmission without quality loss, DB91-TX also supports uncompressed PCM audio stream.

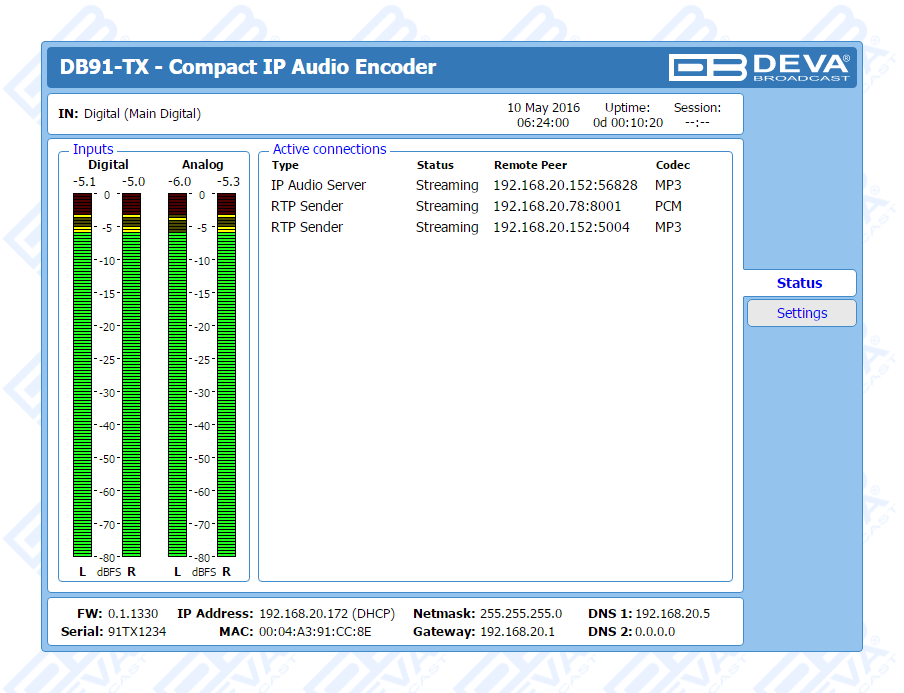

Small and compact, this high-tech device enables quick incorporation in the existing audio systems and their respective effortless integration to the Internet. The front panel’s audio level bar graphs and LED indicators allow for reading at a glance the current state of the device. In line with DEVA’s very essential brand characteristics - easy set-up and monitoring, the DB91-TX could be managed through a simple and intuitive HTML5 interface and any kind of web browser, be it your PC, smart phone or tablet, remotely or locally.

High-operational efficiency second generation IP Audio encoder
  • High Quality HE-AAC (v.1 & 2) and MPEG-1 Layer-3 Compression
  • 32 kHz, 44.1 and 48 kHz sample rates support
  • Up to 88 kbps bitrate for HE-AAC
  • Up to 320 kbps bitrate for MPEG-1 Layer-3
  • Up to 1536 kbps for PCM
  • Analog Audio Input (2 x RCA connectors)
  • Digital Audio Input (RCA Connector)
  • SHOUTcast / Icecast compatible TCP/IP stream server
  • Up to 10 simultaneously connected clients
  • SHOUTcast v1 Source
  • Icecast Source Client
  • Multicast RTP Sender
  • 2 x 5 LED front panel audio level bar graphs
  • 4 x Status LEDs
  • Phones output for quick diagnostics
  • IP address pronunciation at startup (through the headphones)

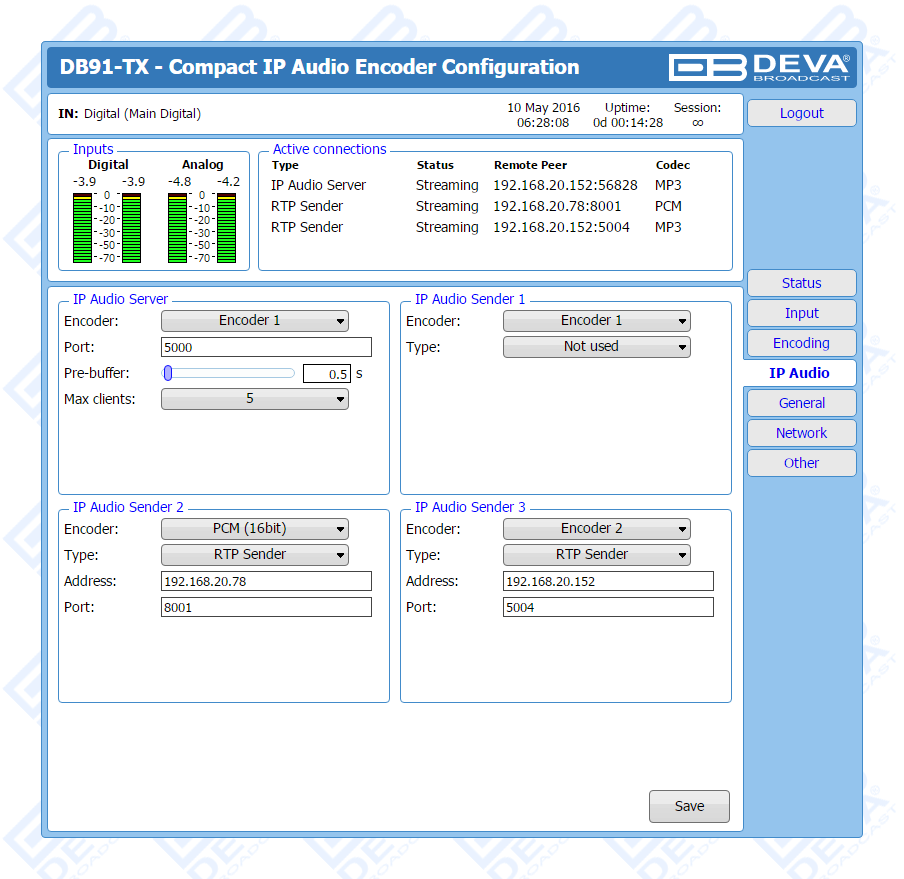

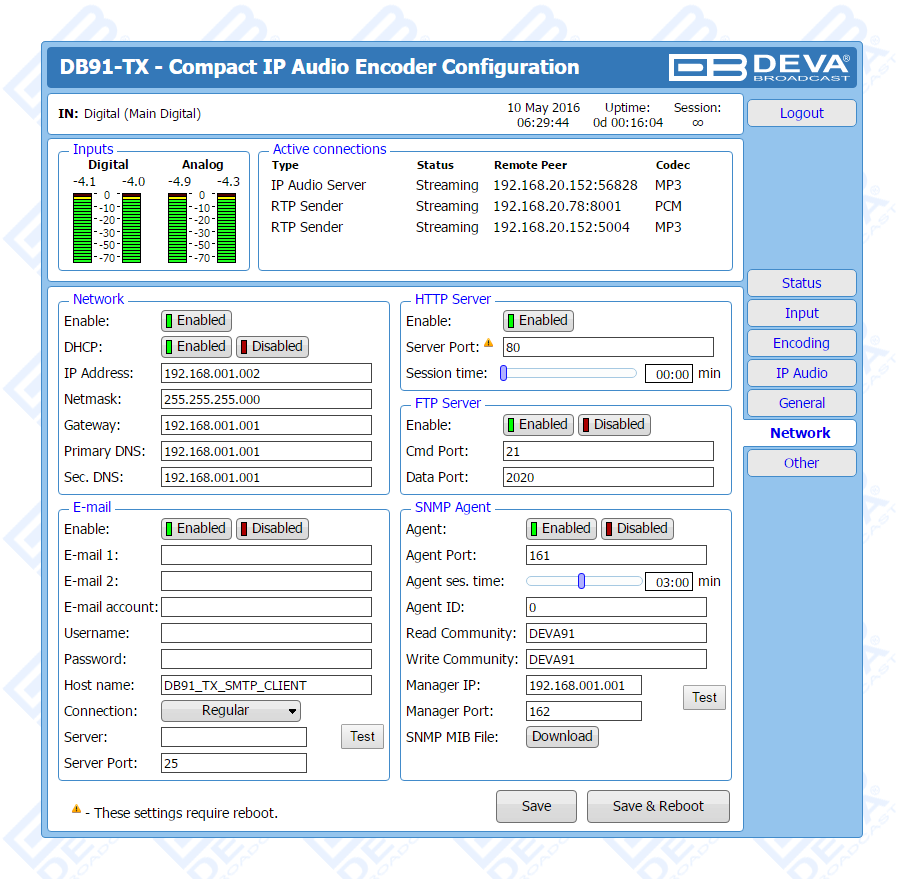

  • Full Control and easy setup via a standard web browser
  • UPnP for easy discovery in Local Networks

DEVA’s in-depth expertise in IP Audio technologies meets cutting-edge trends in DB91-TX, designed to guarantee you outstanding performance. This second generation IP Audio encoder converts the audio signal into high quality compressed audio stream, and transmits the output signal directly over IP-based networks. To ensure audio transmission without quality loss, DB91-TX also supports uncompressed PCM audio stream.

Small and compact, this high-tech device enables quick incorporation in the existing audio systems and their respective effortless integration to the Internet. The front panel’s audio level bar graphs and LED indicators allow for reading at a glance the current state of the device. In line with DEVA’s very essential brand characteristics - easy set-up and monitoring, the DB91-TX could be managed through a simple and intuitive HTML5 interface and any kind of web browser, be it your PC, smart phone or tablet, remotely or locally.

To unit ensures premium broadcasting experience as once the audio source is selected, the encoded in real time audio is immediately transmitted over IP-based networks. The enhanced DB91-TX can act simultaneously as an Icecast/Shoutcast compatible Server, Icecast source client or Real Time Protocol (RTP) sender. The audio stream can be spread over an IP-based network to one or more DB90-RX, DB91-RX or other compatible IP audio decoders. To address the evolving customer needs, the DB91-TX IP Audio Encoder can also send audio to a number of clients simultaneously, provided that a multicast address is being entered as a client address.

Decades of experience to our credit, expanded tech expertise and understanding of customer’s needs have resulted in agiler, trusted and cost-efficient solutions that improve broadcasters’ performance. DB91-TX, with its compact form, wide array of enviable features and intuitive control interface is the valuable asset to any enterprise in need of preeminent broadcasting systems and services.

Audio Encoder
Count2 user selectable plus 1 fixed (PCM)
CodecHE-AAC (v.1 and v.2), MPEG-1 Layer 3 or raw PCM
Sample rates32 kHz, 44.1 kHz and 48 kHz
Channels1 or 2
Bit RatesUp to 88 kbps (HE-AAC); Up to 320 kbps (MPEG-1); Up to 3072 kbps (PCM);
MPEG-1 Layer 3 specific
Encoding modeMono and Stereo, Joint Stereo or Dual Channel
Emphasis50µs, CCITT J.17 or none
IP Audio Server
TypeSHOUTcast/Icecast compatible TCP/IP stream server
CodecAny of the available
CountUp to 10 simultaneously connected clients
Icecast Source Client
TypeIcecast Source Client
CodecAny of the available
CountUp to 3 independent streams
SHOUTcast Source
TypeSHOUTcast v1Source
CodecAny of the available
CountUp to 3 independent streams
RTP Sender
TypeUnicast/Multicast RTP Sender
CodecAny of the available
CountUp to 3 independent streams
Analog audio input
Connector2 x RCA, stereo
TypeUnbalanced
Level+6 dBu (max. +8dBu), user selectable
Sample rate32 kHz, 44.1 kHz and 48 kHz
Dynamic range102 dB
Digital audio input
ConnectorRCA
TypeS/PDIF (IEC 60958)
ResamplingThru build-in sample rate converter
Front panel
Level indicators2 x 5 LED bar graphs
Status Indicators4 LEDs
Headphones1/8” (3.5mm) phones jack
SD CardmicroSD card slot up to 16GB
User interface
Indicators14 LEDs on front panel
Web interfaceFull control and status information
Network
ConnectorRJ-45
TypeEthernet
Device discoveryUPnP support
Operating conditions
Temperature10°C - 45°C
Humidity< 75%, non-condensing
Power requirements
ConnectorPower Jack 5.5mm
Power supply12V DC, 1A
Size and Weight
Dimensions (W;H;D)106 x 33 x 128 mm
Shipping Weight230 x 54 x 172 mm / 0.7kg
Frequently Asked Questions
  • What the SD card in DB91-TX can be used for and how?
    The SD card stores the System Log files. They are available in section Other of the WEB Interface, subsection System Log. Pressing the [View] button will visualize them on the screen.
  • How should I configure the connection between DB91-TX and the FTP Client?
    The FTP facility allows you to access the SD card and download the gathered System Log Files. A standard FTP client should be used in order the device to be accessed via FTP. We recommend the usage of FileZilla. This is a widespread open source software distributed free of charge, hence available for downloading from the Internet. Detailed explanation on how should the connection be configured can be found in the complete User manual.

DB91-TX Demo Devices

Click on the buttons with the selected Demo Devices below and take a closer look at the available features.

Use the following credentials when necessary:
User: admin         Password: pass

Please be patient, the device(s) may be busy at the moment. Try again in a few minutes.
