• FM Band 65 ÷ 108 MHz Basic Spectrum Analyzer
• Dual antenna ports with built-in RF attenuator
• Up to 100 dBµV direct RF Antenna Input
• Selectable wide range IF filter bandwidth
• Built-in input for external MPX analysis
• Fully DSP-based core
• Built-in Loudness Analyzer
• Bright, accurate bar graph LED metering of the Modulation and Pilot Levels
• Total and independent Positive and Negative deviation bar graph
• Left, Right, L+R, L-R bar graph LED audio level meters
• Wide angle, easy to read OLED display

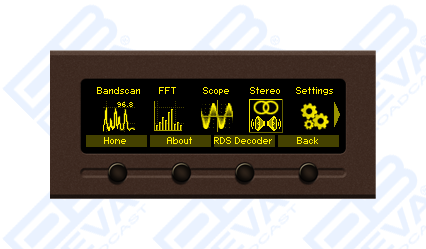

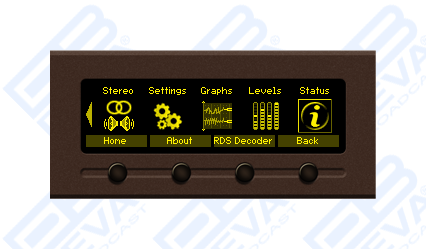

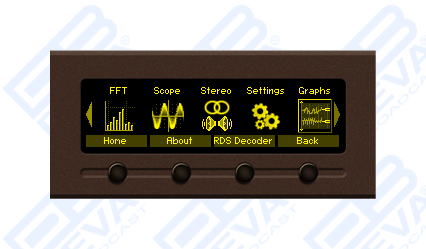

• Very Intuitive Navigational Menu
• Built-in Oscilloscope for IF, MPX, Pilot, RDS, Left & Right display

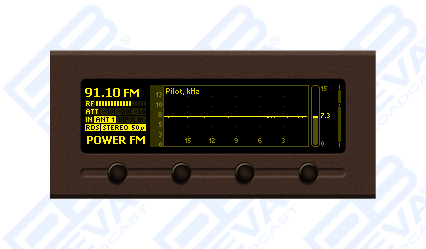

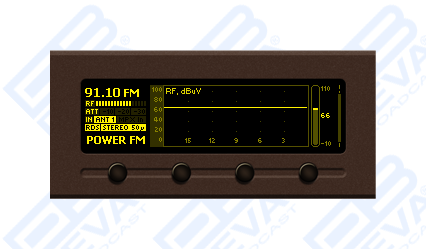

• Levels measurement with data history
• Spectrum analyzer allowing checking of the RF Carrier and MPX
• Selectable De-emphasis - Off, 50µs and 75µs
• Quick Station access via 4 Presets
• Built-in Stereo Decoder
• Real Time Audio Program Streaming
• Remote Listening via optional GSM modem
• Simultaneous Logger and Monitoring

• Built-in 50 channel Data logger
• Built-in WEB and FTP server

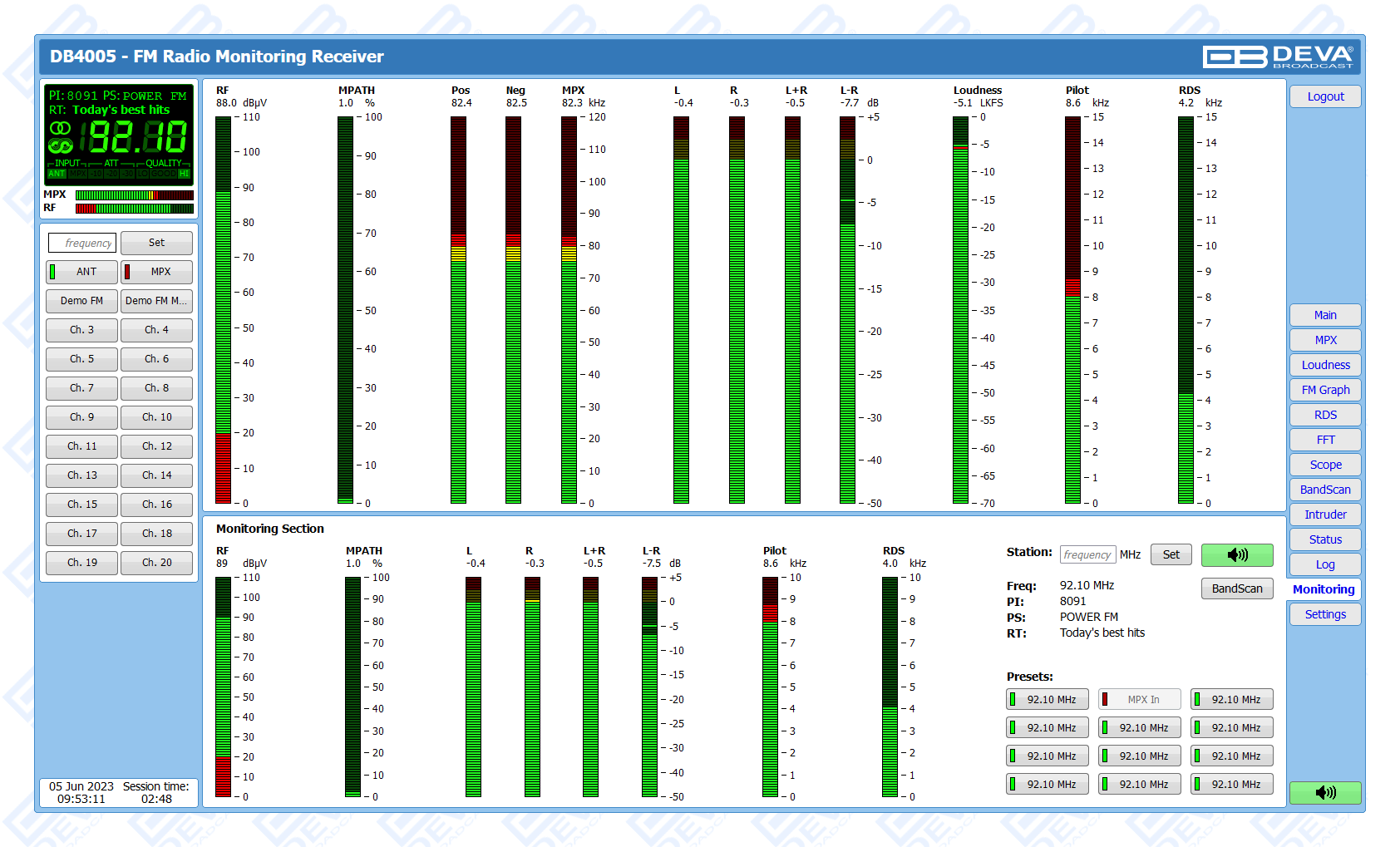

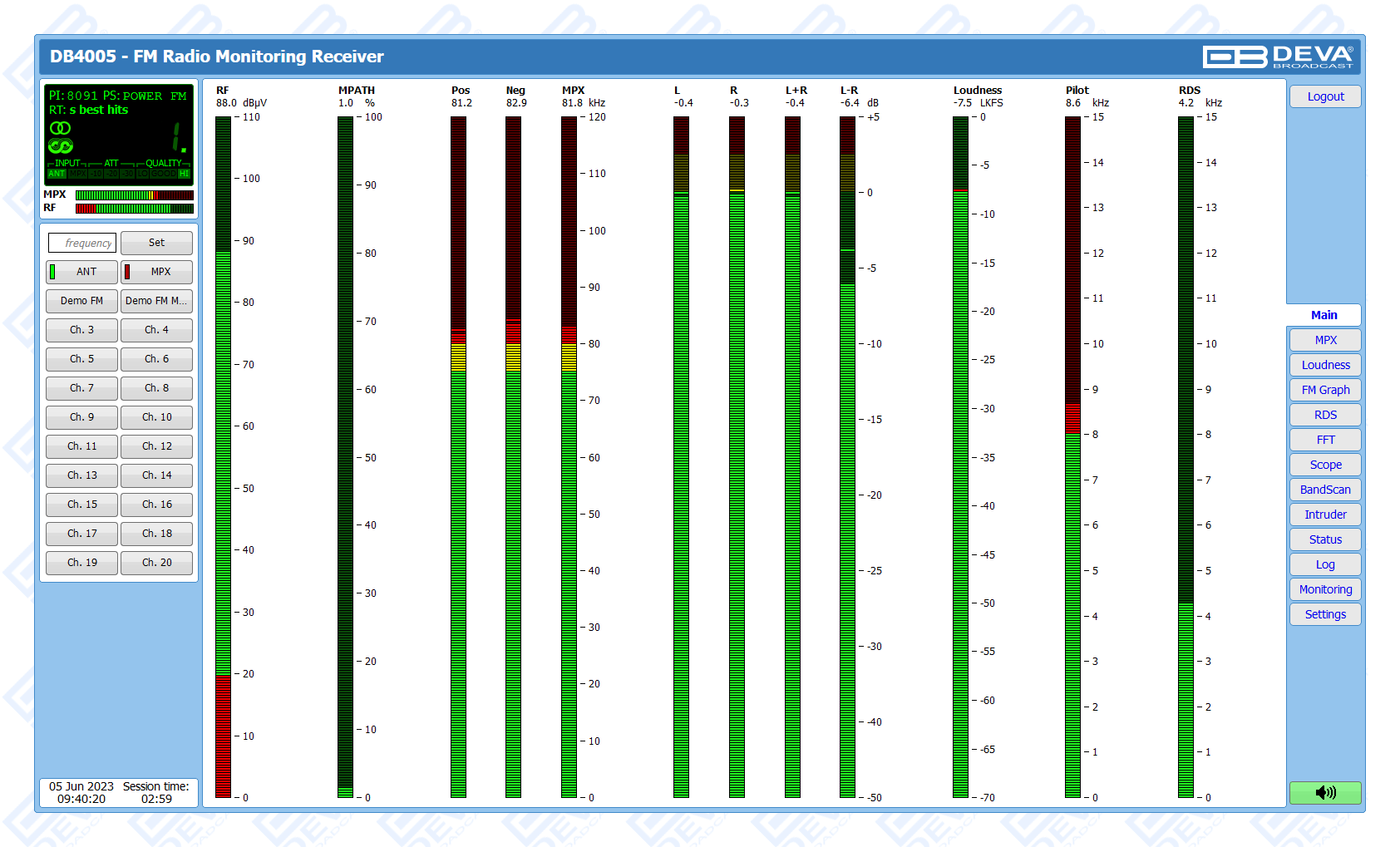

• Easy to use WEB interface
• Apple and Android devices support

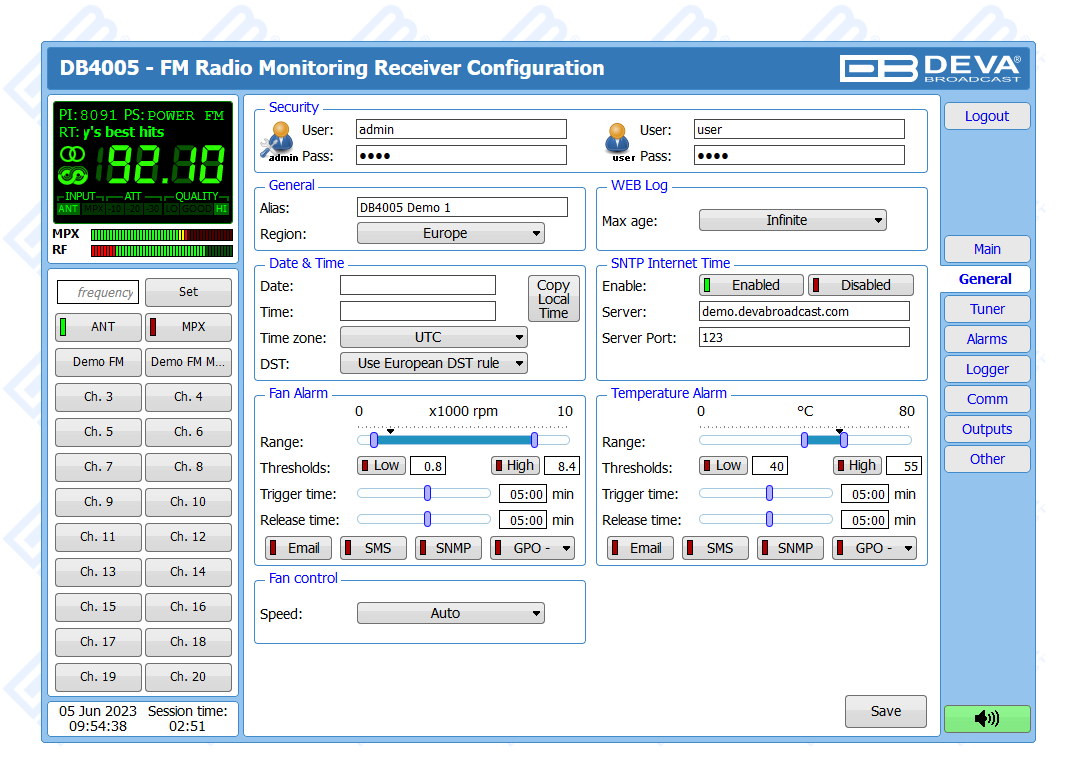

• SNTP for automatic synchronization of the built-in clock
• RDS and RBDS decoder with BER meter
• Alarm dispatch via E-mail, SMS, SNMP and GPO
• Complete status reporting with SMS via optional GSM modem
• Protected access to the device settings

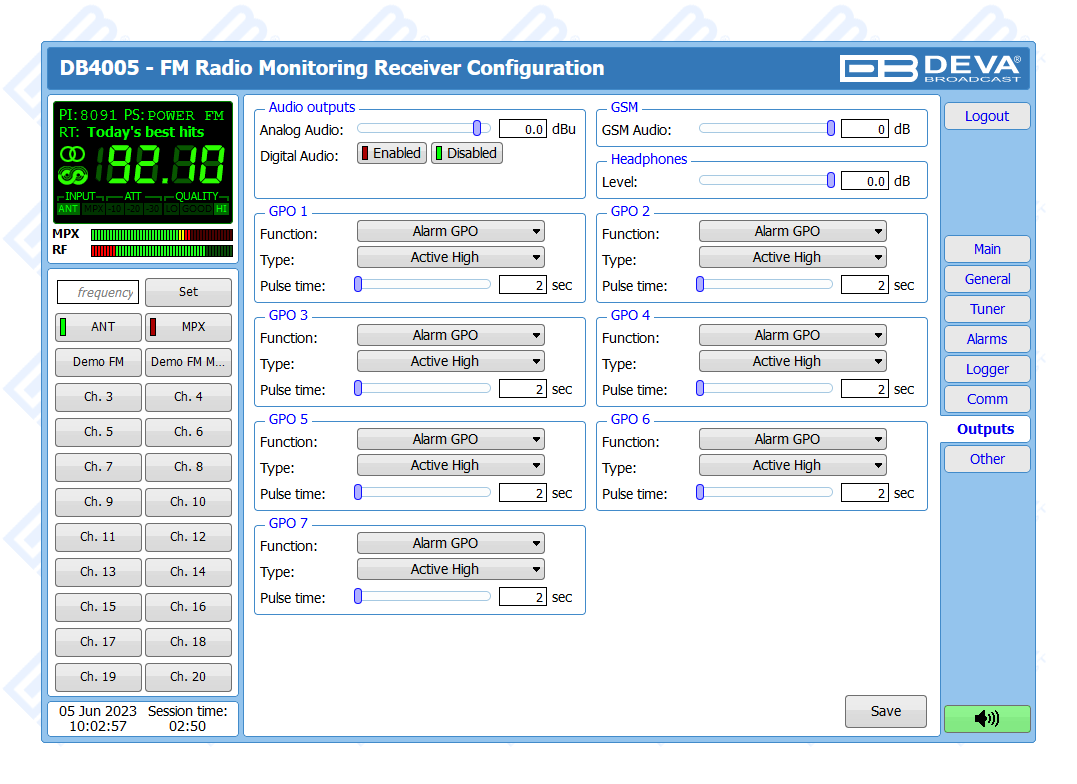

• Level Adjustable, Balanced Analog Audio Outputs on XLR Connectors
• Professional AES/EBU, SPDIF and Optical Digital audio outputs

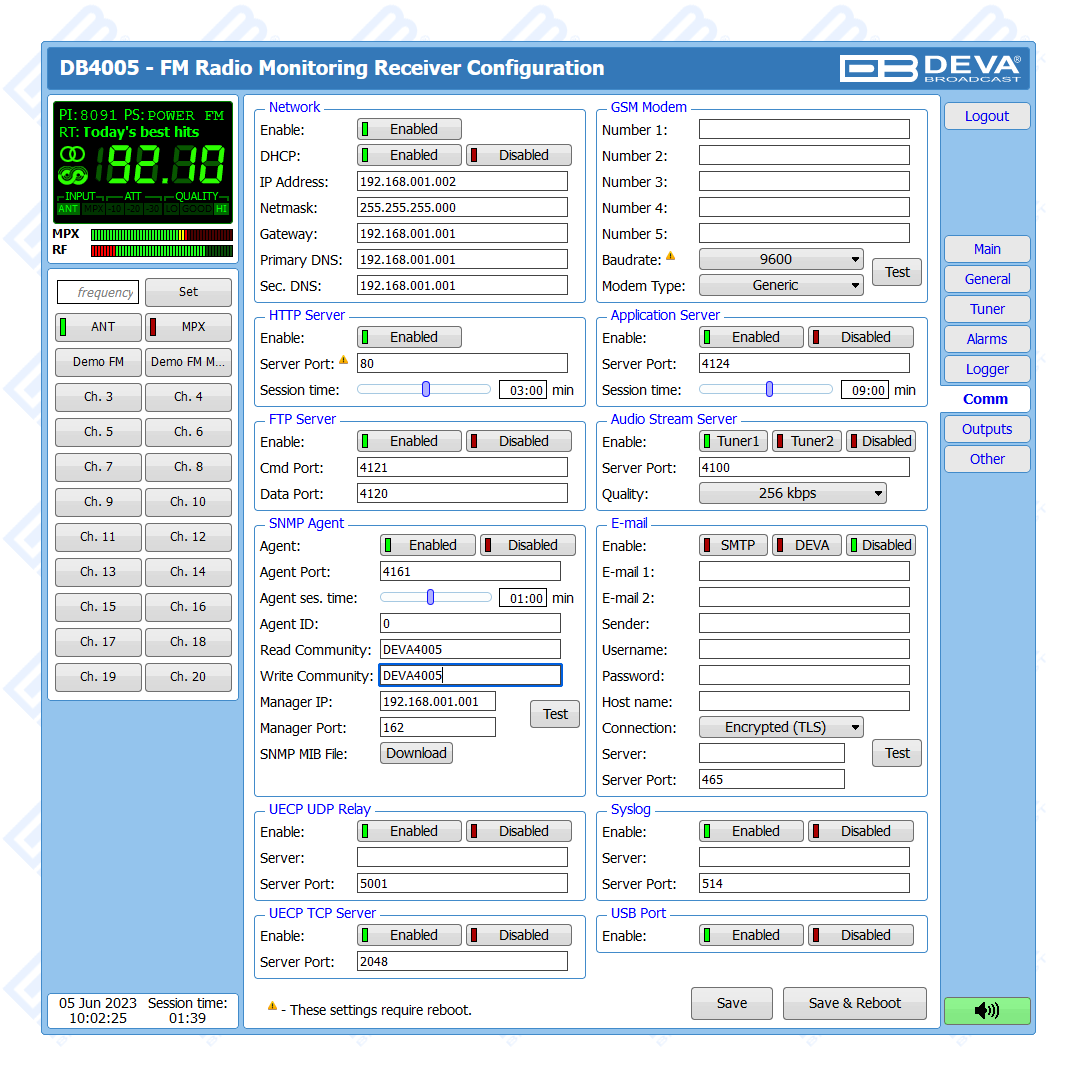

• LAN port for full TCP/IP remote control and monitoring
• Adjustable MIN/MAX alarms for RF, Pilot Left & Right Audio Levels
• Adjustable MIN/MAX alarms for MPX, MPX Power & RDS
• USB communication interface for local connectivity
• Headphone output with front panel level control
• Firmware updates will ensure improved operation
• Accurate front-panel metering for local use
• Restore Factory Parameters option
• Easy Installation and Setup

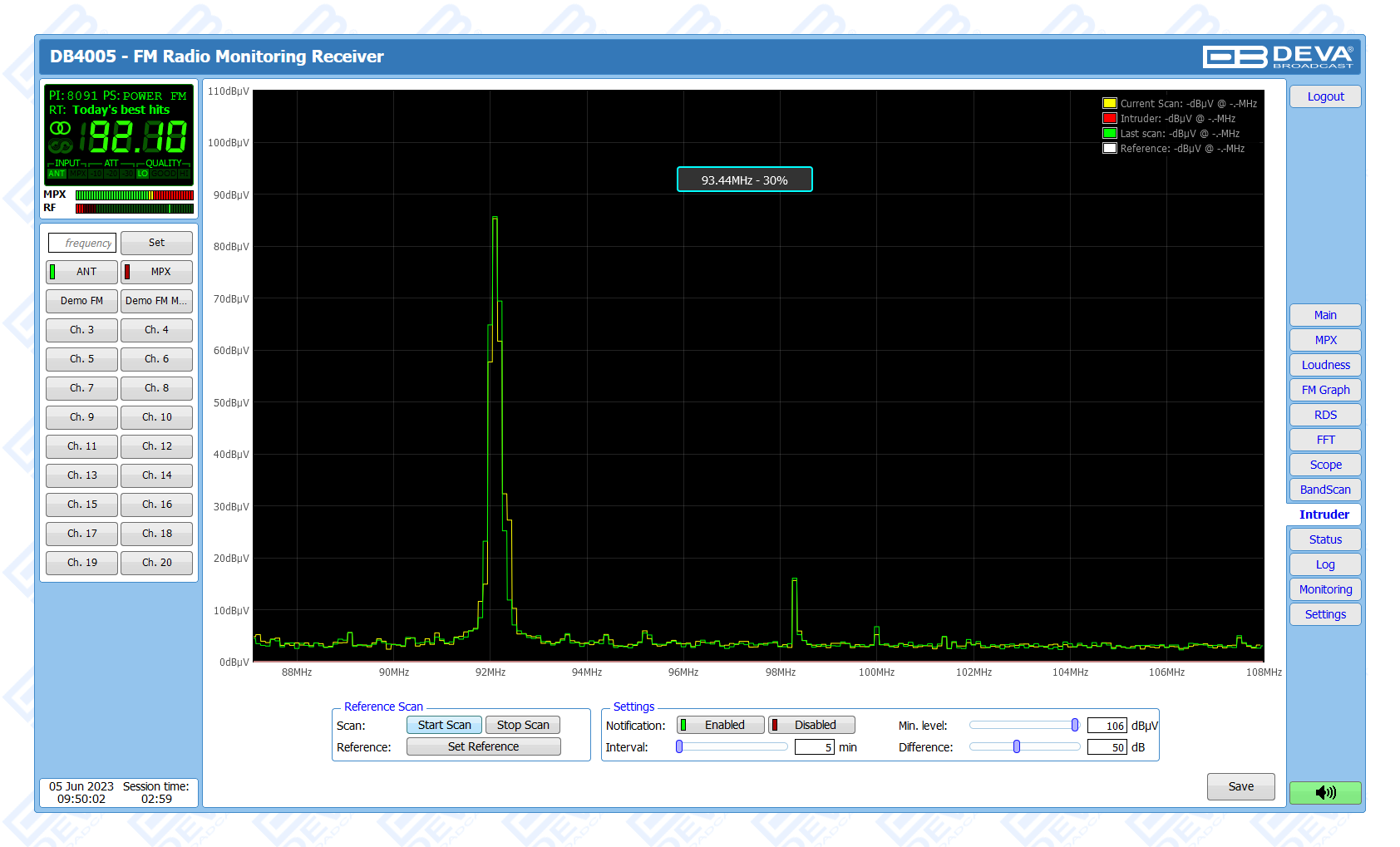

• Intruder BandScan Alert

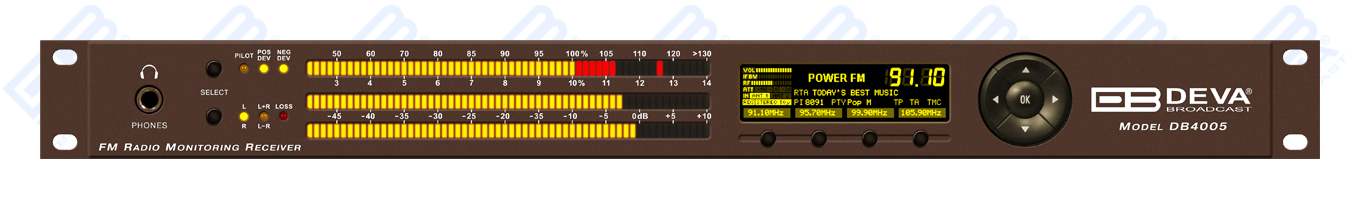

DB4005 is DEVA Broadcast's third-generation digital FM Radio modulation analyzer and receiver, the result of long years of experience and a desire to always provide intelligent near-perfect solutions, while keeping pace with the very latest technological developments and trends.

With this product, upon demodulation of the FM signal, the RF signal is digitalized by the SDR FM tuner and all signal processing is achieved through sophisticated DSP algorithms. The high precision of the powerful digital filters used in this equipment enables the FM signal to be accurately and repeatedly analyzed with each device. An important asset to the DB4005 is the MPX input, which allows you to monitor external composite signals, regardless of whether they are from a composite STL receiver/stereo FM encoder, or from an off-air source. As this is a tool of great processing power, it provides detailed readings of all the multiplex FM signal components, while all measurements are refreshed simultaneously and synchronously.

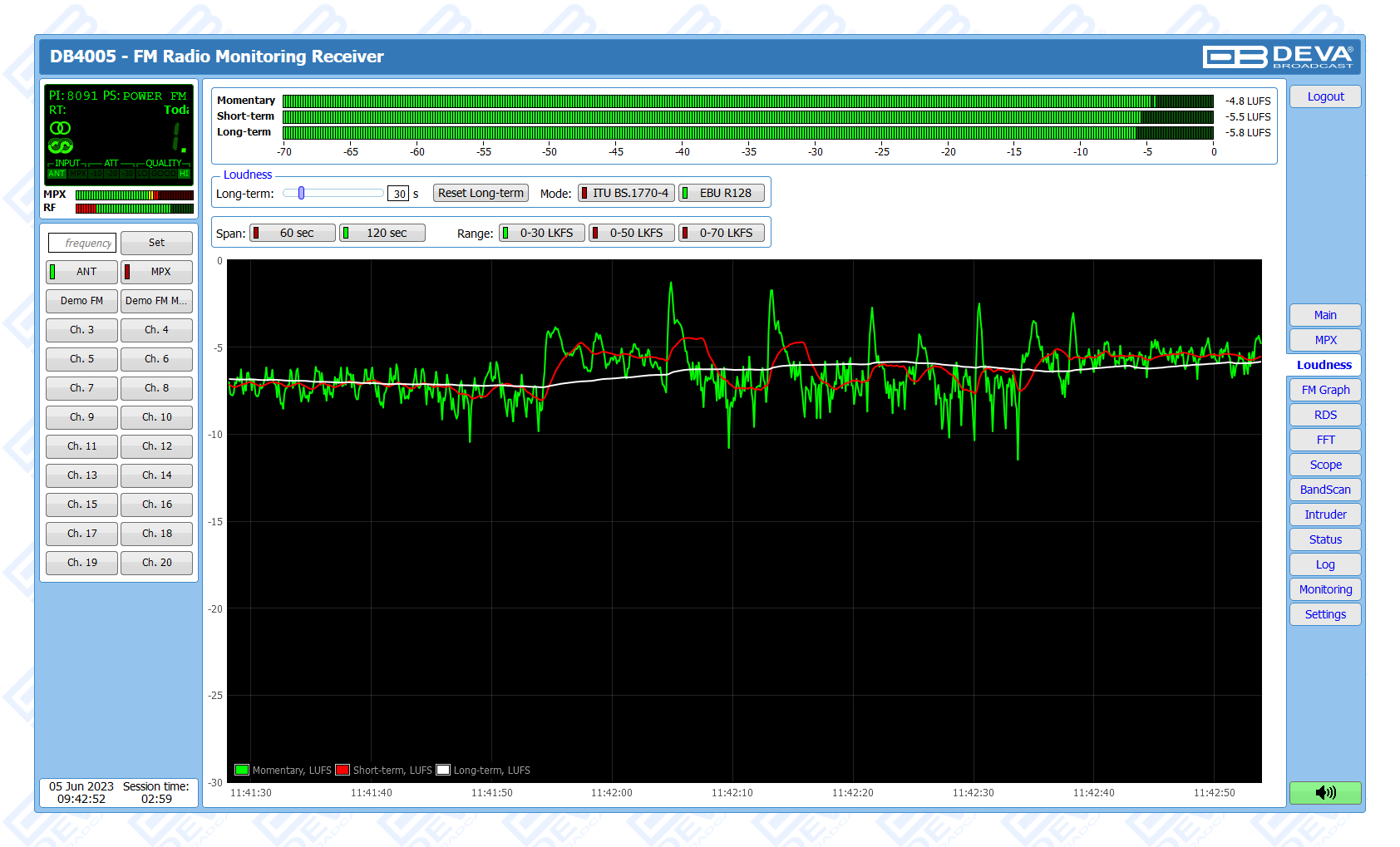

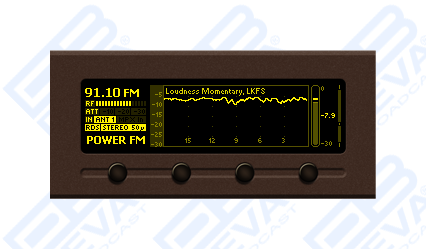

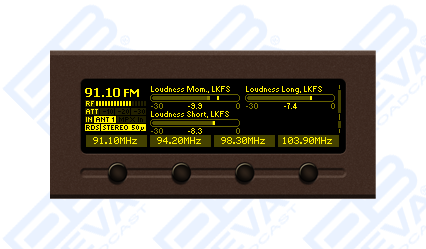

Another useful feature of the DB4005 is the Loudness Meter, which allows for measurements to be shown as defined by ITU BS.1770-4 and EBU R128 recommendations, as the product supports both standards.

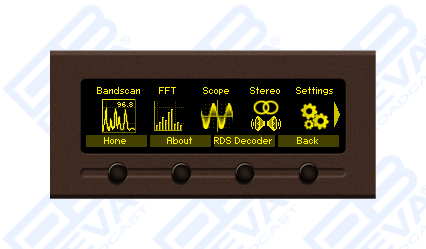

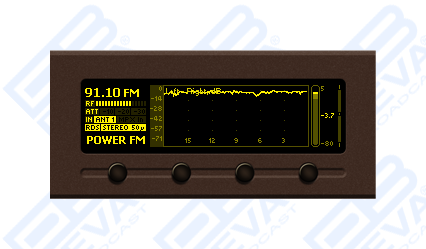

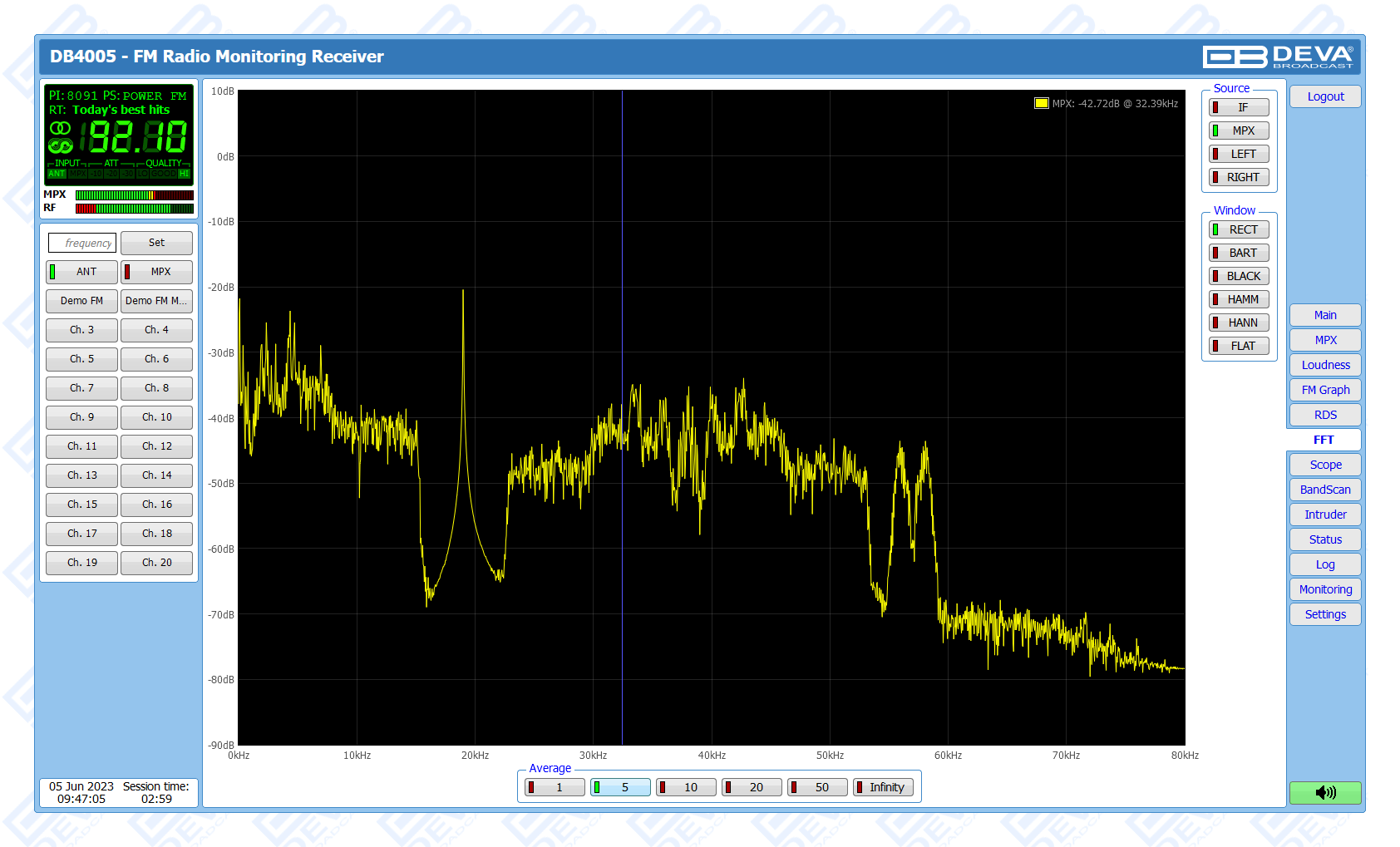

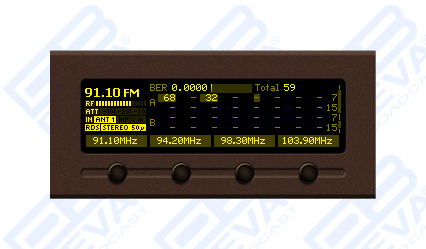

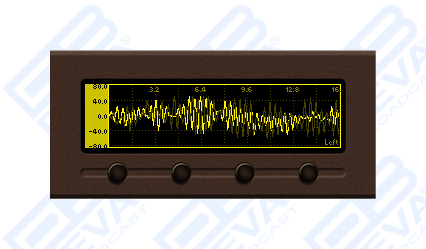

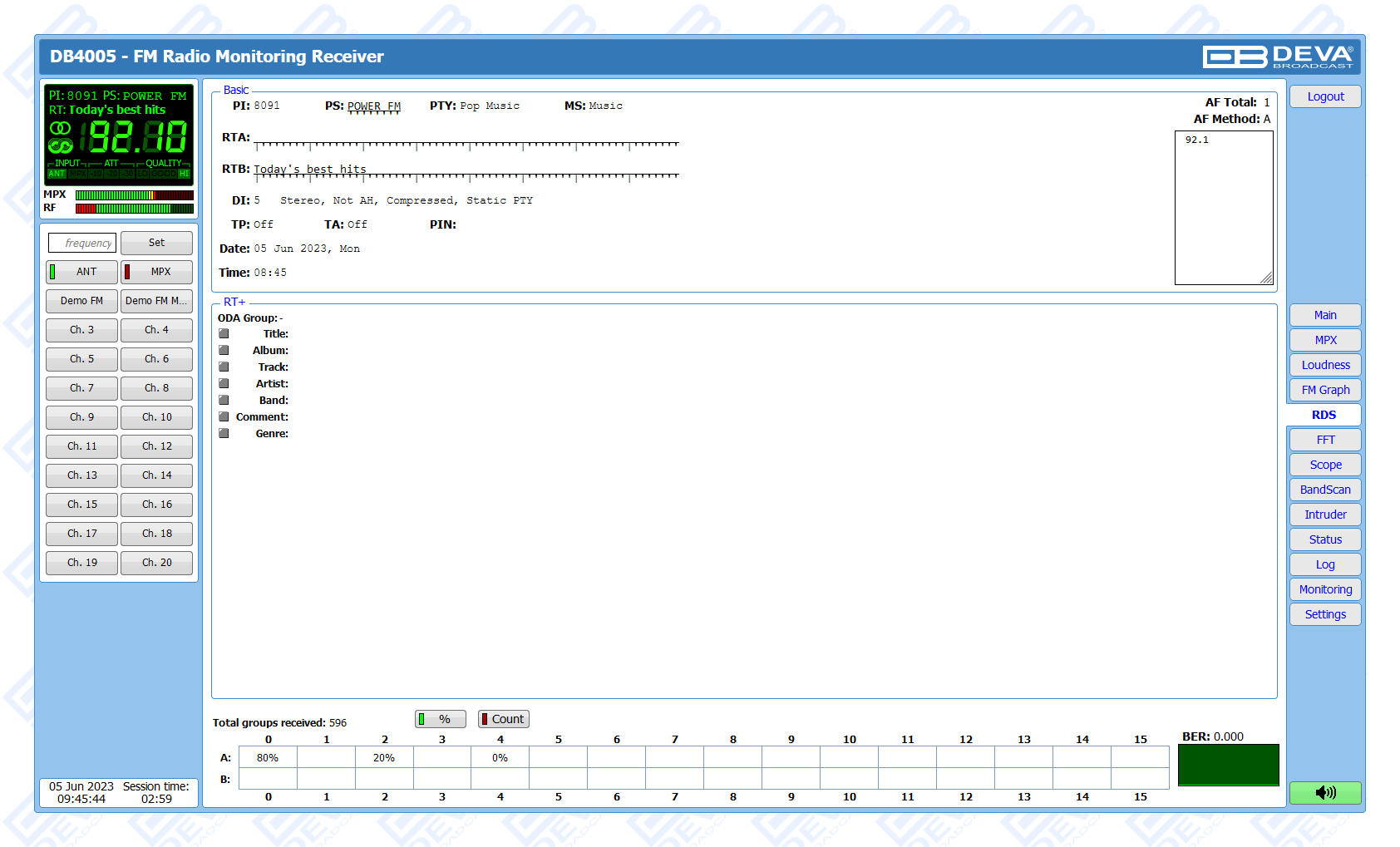

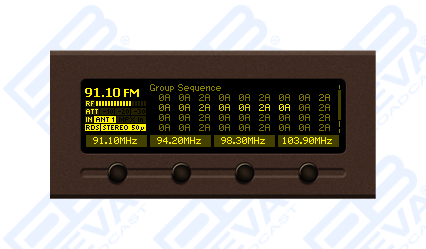

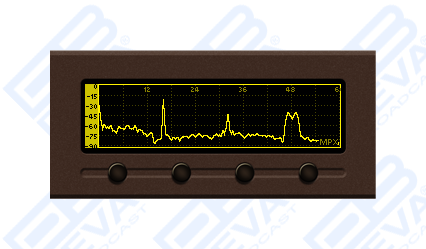

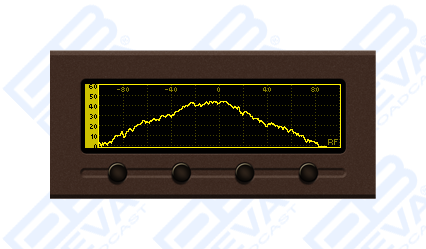

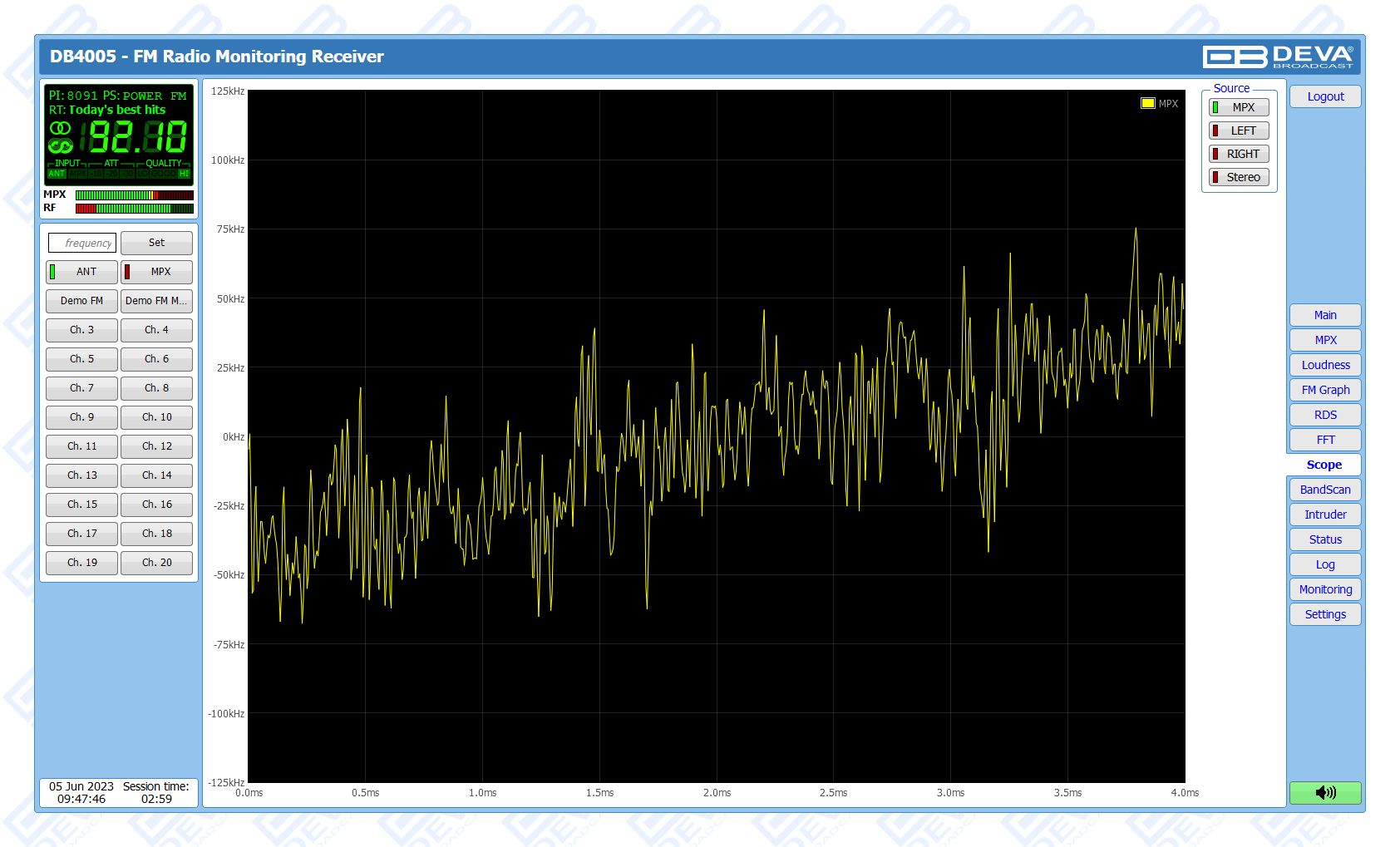

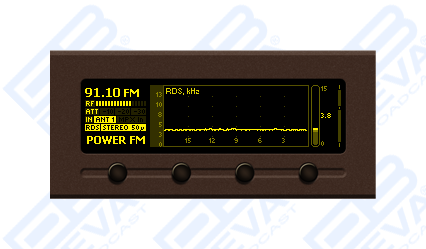

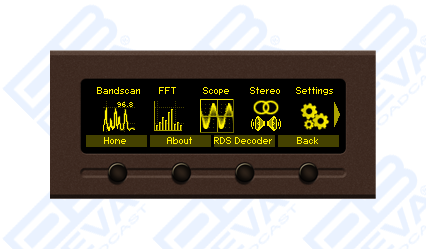

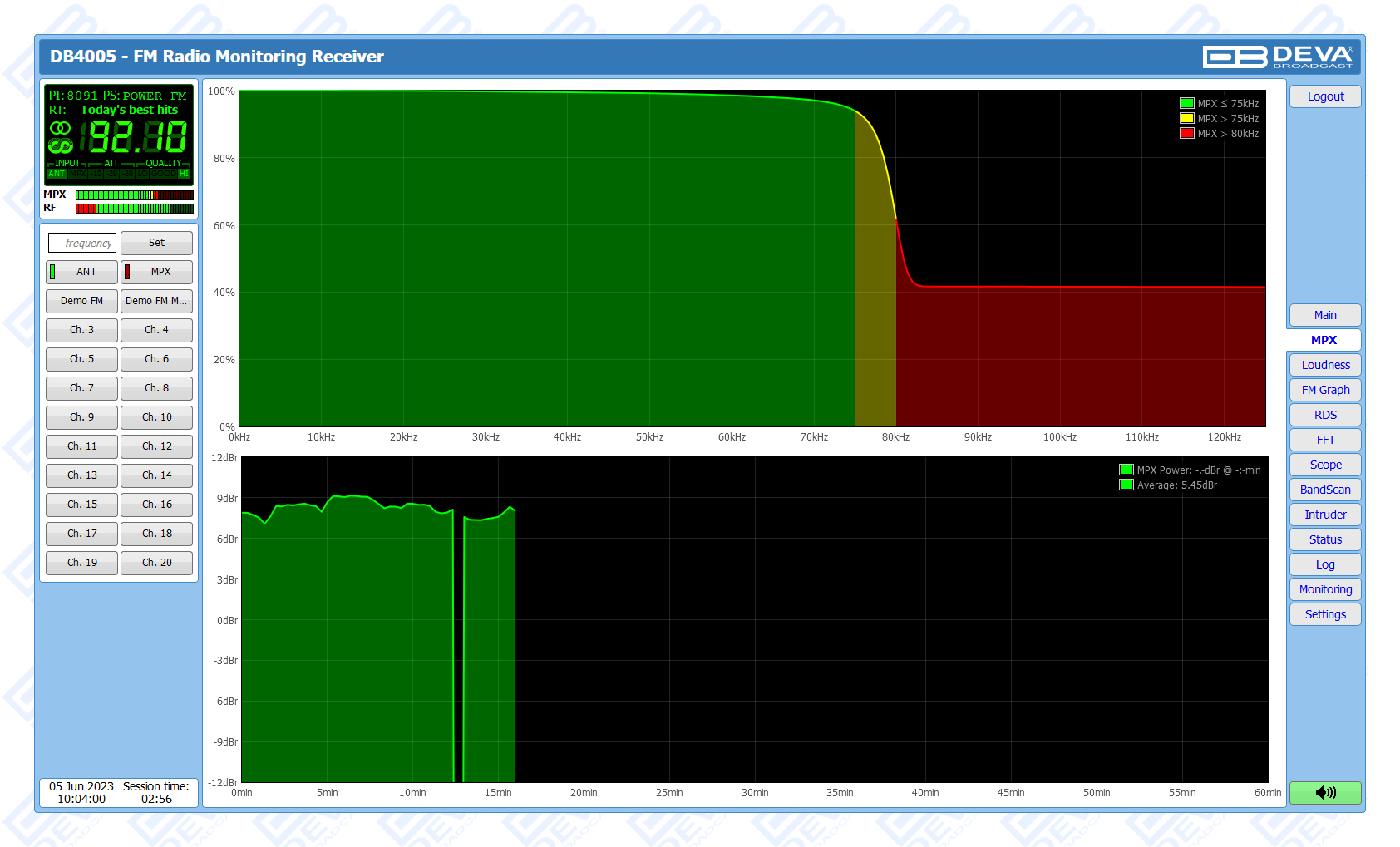

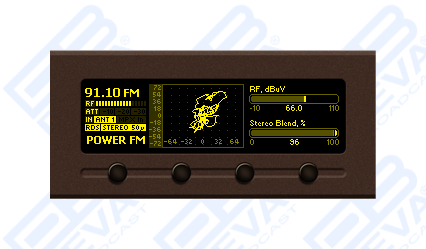

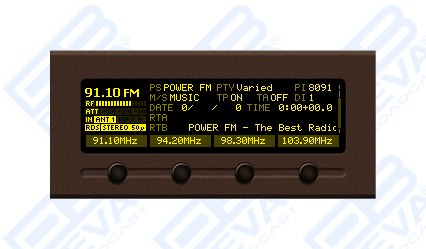

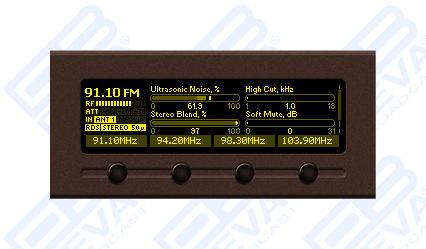

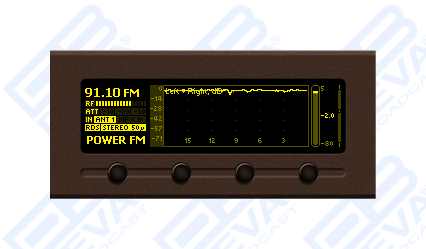

The DB4005 has an easy to read, high-resolution OLED graphical display and ultra-bright bargraph LED 60 segment indicators that allow reading the main signal parameters at a glance. The built-in oscilloscope represents the observed signal change over time and helps you visualize the most important signals participating in the process of demodulating and stereo decoding. Complementing the Oscilloscope mode, the Spectrum analyzer mode allows for spectral analysis of the input signal. Spectral components of the selected signal are determined on the basis of Fast Fourier Transform. MPX Power and all other level measurements are supported by measurement history data. Additionally, RDS information contained in the processed MPX signal is easily visualized and represented as RDS/RBDS Data and detailed RDS/RBDS Statistics.

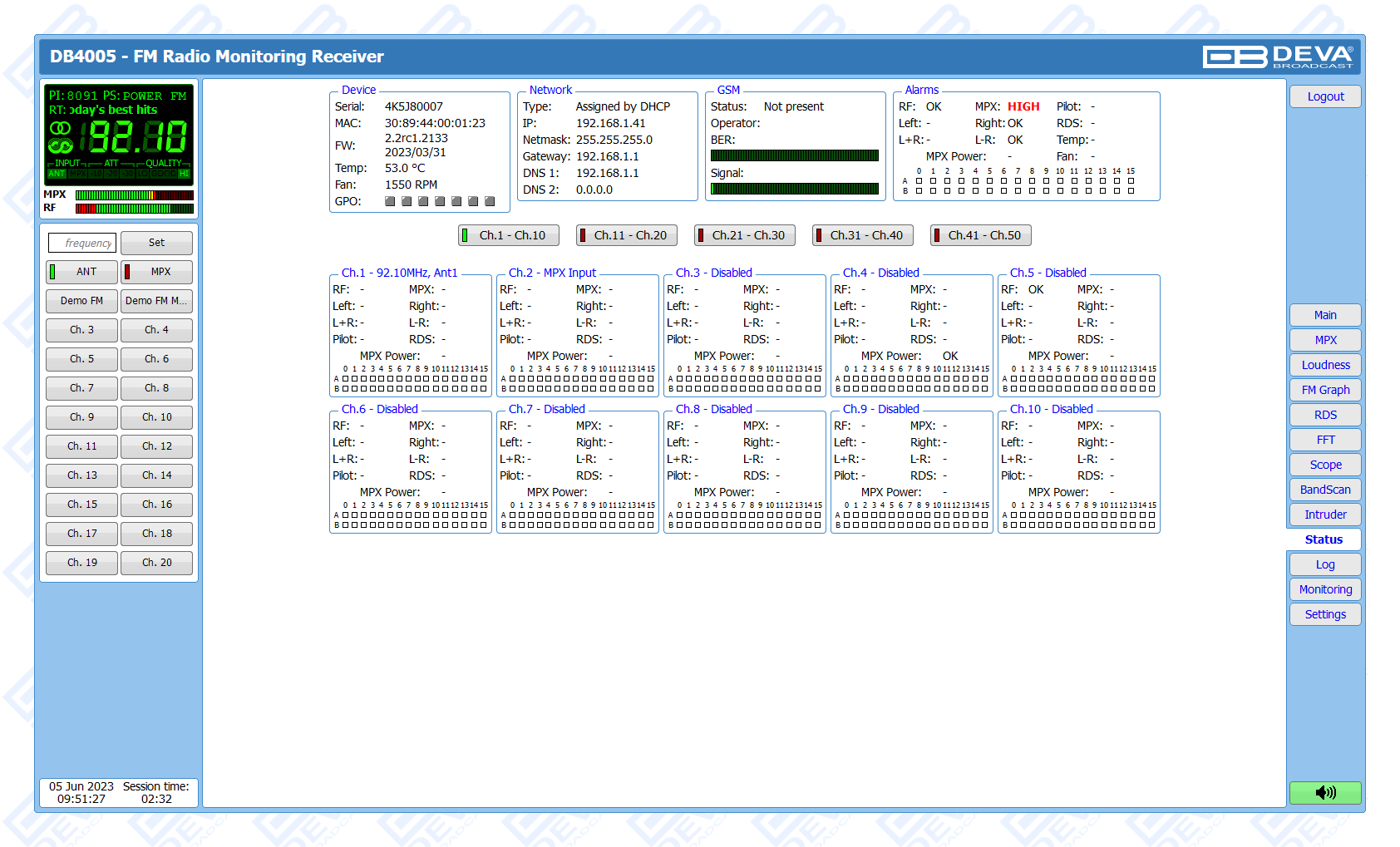

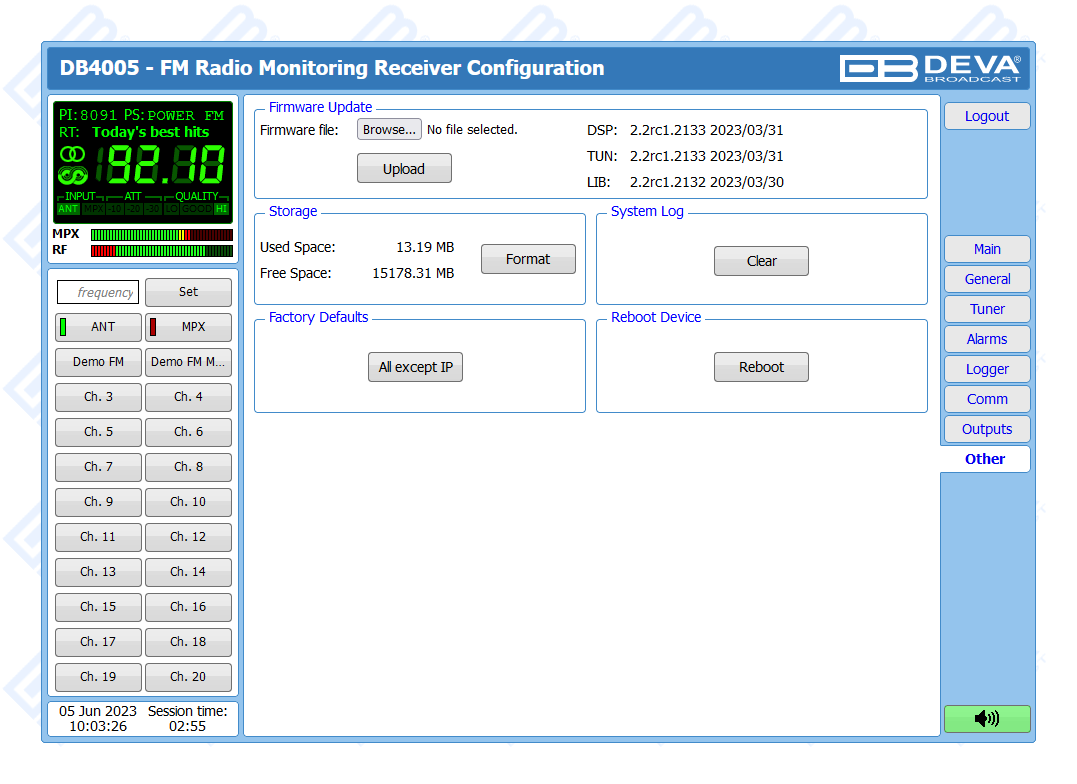

Dependable off-air monitoring enables you to keep an eye on other stations as well as measure the important parameters of your own signal. The DB4005 is designed to support USB and LAN communication interfaces, allowing flexibility of the remote connection and control of the unit. The DB4005 is the most cost-effective way for regular monitoring of the quality and continuity of your station and up to 50 other FM Radio Stations, with many features such as TCP/IP connectivity, audio streaming, and automatic alerts for operation outside of predefined ITU-R ranges. In case of transmission failure, maintenance staff will be immediately alerted via e-mail, SNMP, or SMS, which signals the technicians to restore the normal service as soon as possible. The DB4005 allows you to monitor all RDS/RBDS and other signal parameters from everywhere via its communication channels TCP/IP, and allows for GSM Connectivity via the optional external GSM Modem. Easy channel status monitoring or audio listening from everywhere could be done through your mobile phone. With the Audio Stream Server you can even listen to, skim through, and record the audio from another station.

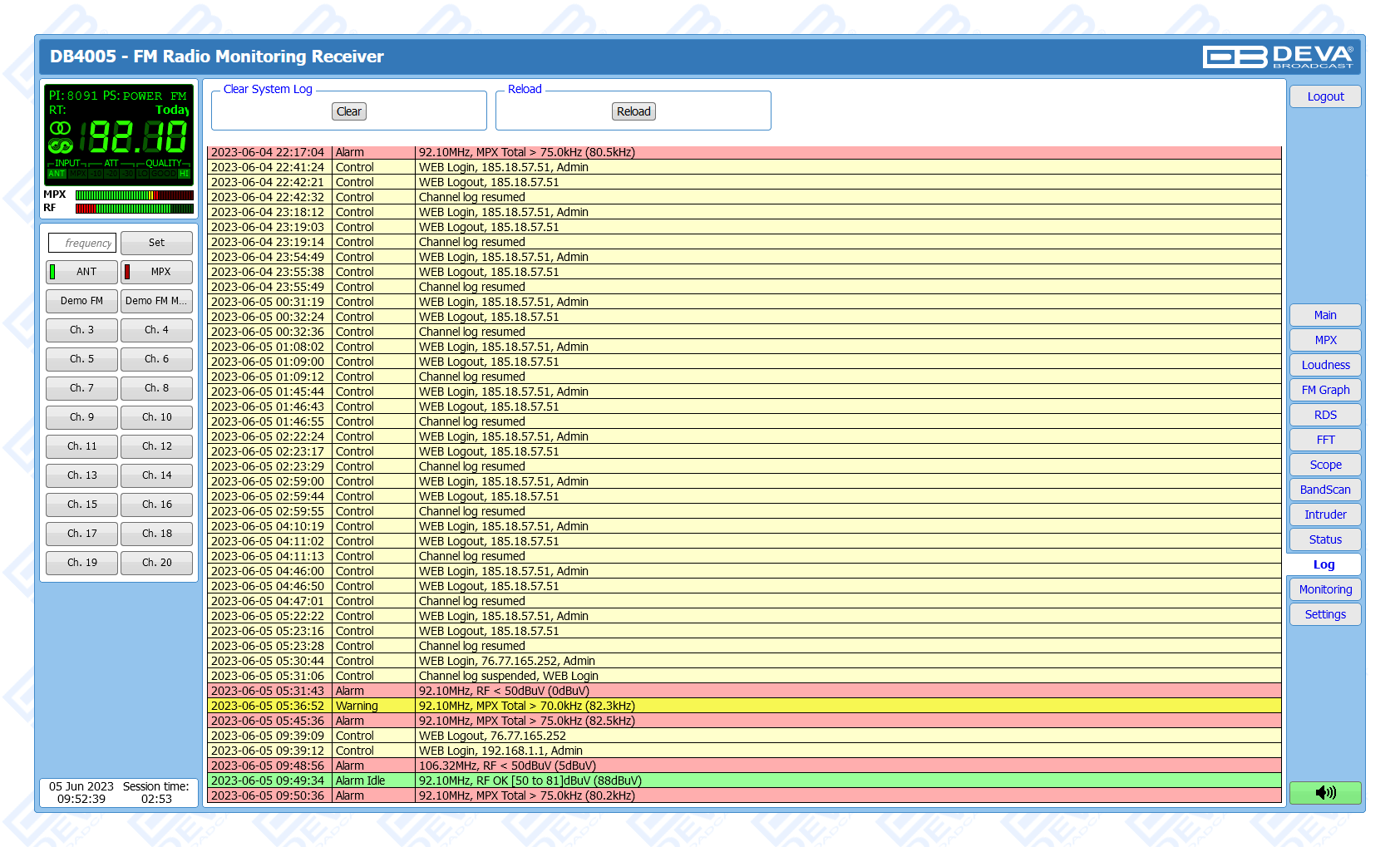

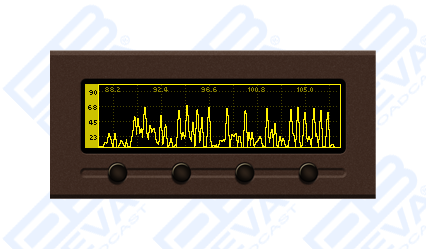

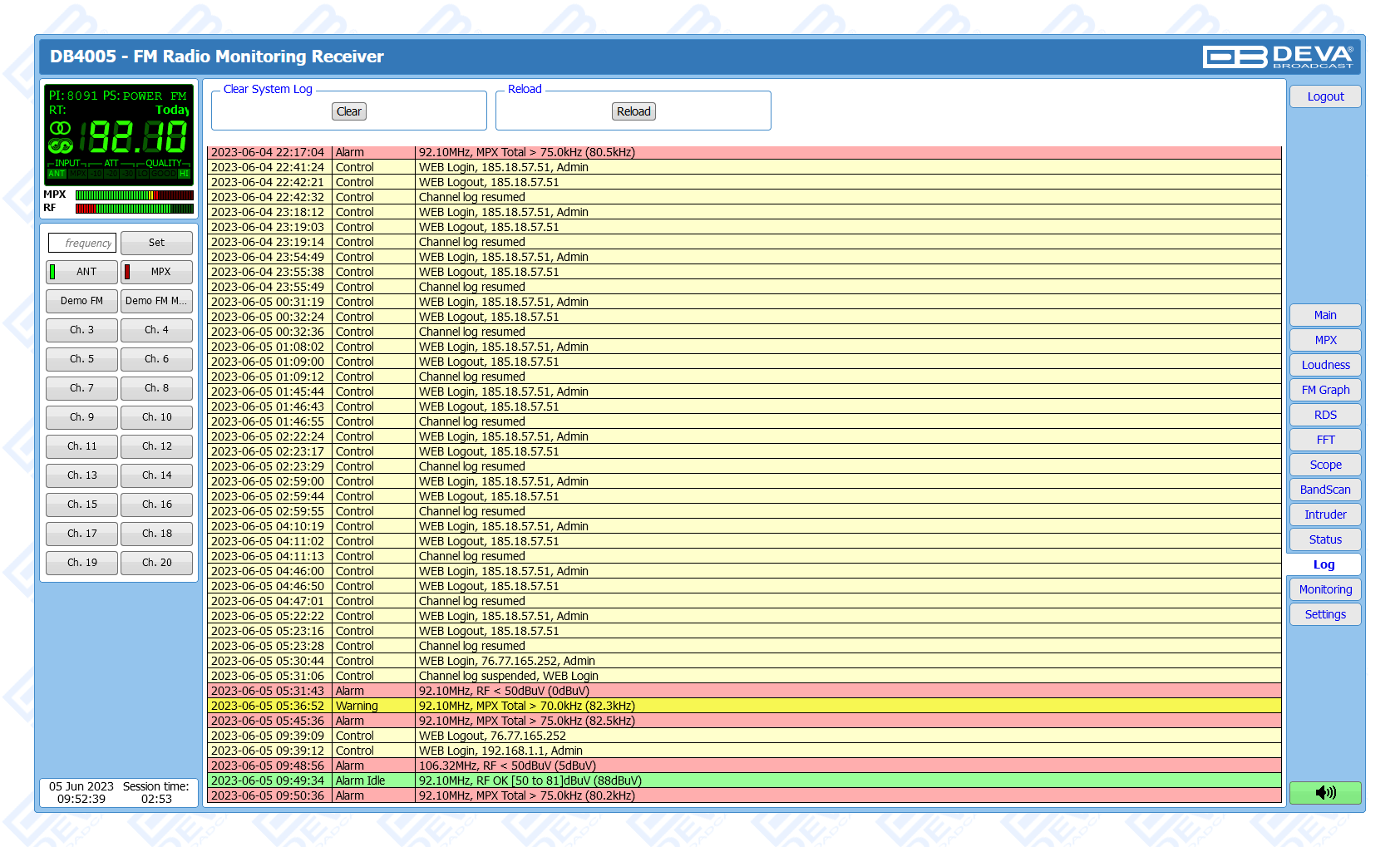

All the channel measurements and logs are saved on the internal device memory. The built-in FTP system manages the files in accordance with an assigned schedule. All the collected information is centralized in a database and can be revised, played back, and sent automatically to the qualified, staff if need be. The Interactive Software-based Log Viewer tool allows very detailed control and analysis of any station from the list of monitored channels. The Band Analyzer function presents an overview of all FM signals available, plus the RF signal strength of these stations. Scans are possible within any section of the FM band in 3 different modes. The generated spectrum diagram shows the RF Level vs. the Frequency.

Accessories

GSM-MODEMModem, Power Supply, Antenna
